TE Connectivity Diplomate DL DIP socket, order code 2-641616-1, 40 positions (2 x 20), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, through-hole solder termination, tin-plated beryllium copper contacts, UL94 V-0 thermoplastic housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.120\" (3.05mm) |
| Number of positions or pins | 40 (2 x 20) |

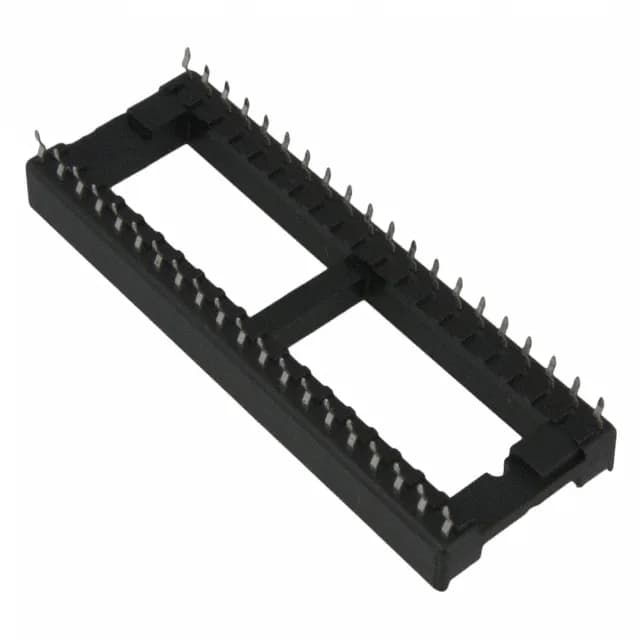

The 2-641616-1 is the 40-position member of TE Connectivity's Diplomate DL DIP socket line, arranged as 2 rows of 20 on a 0.6" (15.24mm) row spacing. The open-frame design allows airflow and component clearance under the socket.
The 2-641616-1 is listed as Obsolete by TE Connectivity. No official pin-compatible successor is available from the original manufacturer. A board spin is required for any functional replacement.
Yes, TE Connectivity lists the 2-641616-1 as Obsolete. No direct replacement is available from the original manufacturer.
40 positions arranged as 2 rows of 20 on a 0.6" (15.24mm) row spacing. The pitch between adjacent pins in a row is 0.100" (2.54mm).
