TE Connectivity AMP Connectors 2-641932-2 — Pin Headers, Sockets & Housings

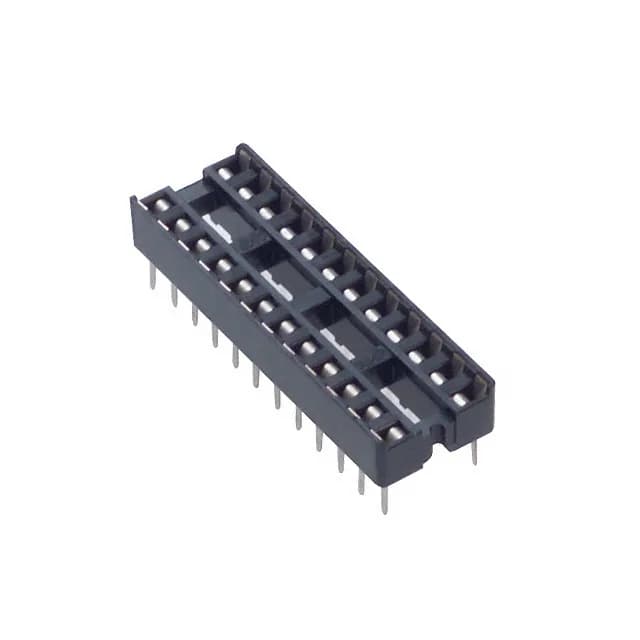

2-641932-2 DIP Socket, 24-Pin, 0.100" Pitch

MPN2-641932-2
Obsolete

TE Connectivity AMP Connectors Diplomate DL DIP socket, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, through-hole solder termination, gold-plated beryllium copper contacts, open frame, UL94 V-0 thermoplastic housing.

$3.7000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2-641932-2 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole
Operating temperature-55°C ~ 125°C
Housing materialThermoplastic
Contact material - postBeryllium Copper
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

2-641932-2 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact resistance30mOhm
Contact finish - postGold
Contact finish - matingGold
Termination post length0.128\" (3.24mm)
Contact finish thickness - post30.0µin (0.76µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins24 (2 x 12)

Product details

24-Pin DIP Socket for Legacy ICs

The 2-641932-2: The open-frame thermoplastic body (UL94 V-0 rated) allows airflow around the IC during operation, and the through-hole solder tails lock the socket in place before wave soldering. In a production test jig where the socket sees daily IC swaps, the contact resistance stays under the 30mOhm spec for years.

Obsolete — Sourcing via Independent Channels

The base product number 641932 is the family identifier; no pin-compatible alternative is listed in the Diplomate DL series. For BOM lines that still call out this socket, independent distribution is the available sourcing route. Quantities are confirmed per RFQ — the lot size and condition vary by channel.

Gold on Beryllium Copper — High-Cycle Contact Interface

The contact resistance is specified at 30mOhm, which is tight enough for 5V logic and low-level analog signals without measurable voltage drop. The UL94 V-0 thermoplastic housing ensures the socket does not propagate flame in equipment that requires a flammability-rated enclosure.

Frequently asked questions

Is the 2-641932-2 obsolete, and where can I buy it?

It is available through independent distribution channels — quantities are sourced per RFQ. No stock or pricing is listed; availability is confirmed at quote time.

What is the direct replacement for the 2-641932-2?

TE Connectivity has not published a direct replacement or successor for the 2-641932-2. The base product number 641932 has no pin-compatible alternative in the Diplomate DL series. A board-level redesign may be needed if a functional equivalent is required.
