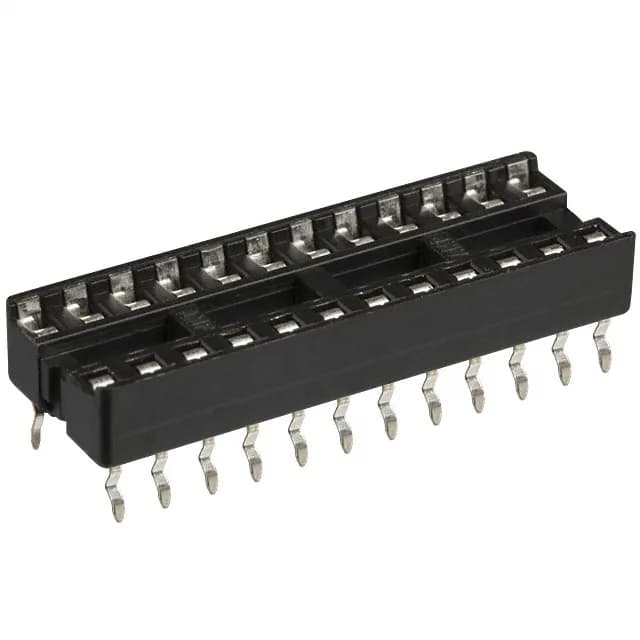

TE Connectivity AMP Connectors Diplomate DL DIP header, order code 2-641933-1, 24 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.128\" (3.24mm) |
| Number of positions or pins | 24 (2 x 12) |
The 2-641933-1: Tin-plated mating contacts and tin-plated posts on beryllium copper base metal; through-hole solder termination. Housing is UL94 V-0 thermoplastic.
The 2-641933-1 is listed as Obsolete by TE Connectivity AMP Connectors.
Pricing and stock are confirmed per RFQ. Submit a request with the target quantity for a current quote and lead time.
