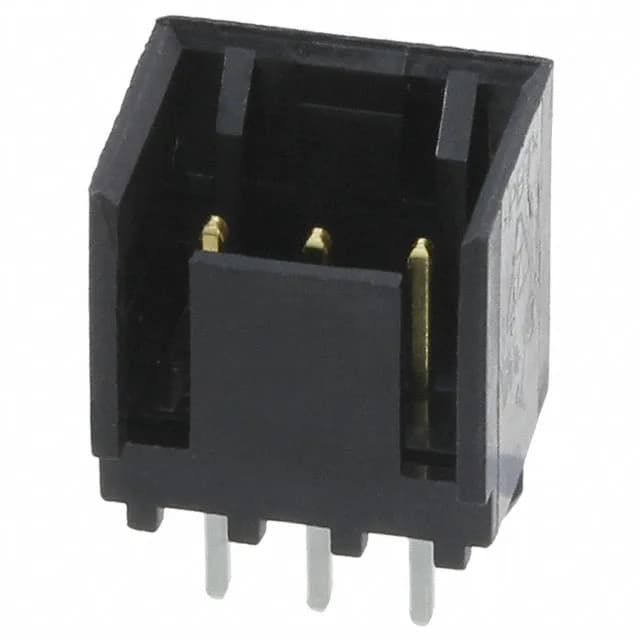

TE Connectivity AMP Connectors MTA-100, Header, 3 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Friction Lock, Gold Mating Finish
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.410\" (10.41mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-wall shroud and friction lock keep the mating connector seated under vibration, which is the main reason a harness builder picks this over an unshrouded pin strip.
No stock-holding claim; availability varies by distributor.
It mates with a 3-position MTA-100 receptacle housing (TE order code 3-644488-3 or equivalent) using the matching crimp terminal. The 0.100" pitch and friction lock are common across the series, so any MTA-100 3-position receptacle with the same lock will fit.
