TE Connectivity AMP Connectors MTA-100 series, 2-644488-4, Board to Cable/Wire, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Tin Mating Finish, Friction Lock, Black Polyester Housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |

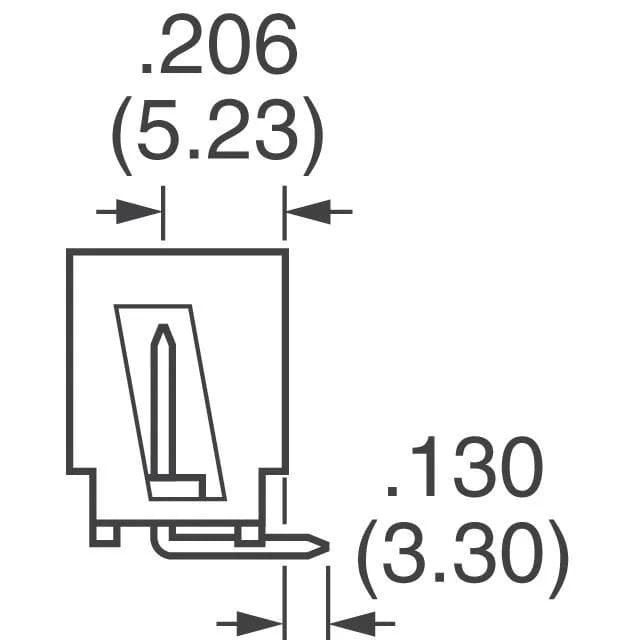

| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.200\" (5.08mm) |
For a given wire size, the contact temperature rise stays within the housing's UL94 V-0 polyester limit.
The through-hole right-angle mounting requires a PCB with plated holes on a 0.100" grid. The contact length - post is 0.130" (3.30 mm), which determines the solder tail length below the board — sufficient for standard 0.062" thick PCBs with a typical solder fillet.
ROHS3 compliant — no lead, mercury, cadmium, or other restricted substances above threshold limits.
The 2-644488-4 mates with MTA-100 series IDC or crimp receptacles (female housings) that accept 0.100" pitch ribbon cable or discrete wires. Confirm the receptacle's position count matches 4 positions.
Yes, the 2-644488-4 is ROHS3 compliant — it meets the EU RoHS directive for restricted substances. The housing material is UL94 V-0 rated.
