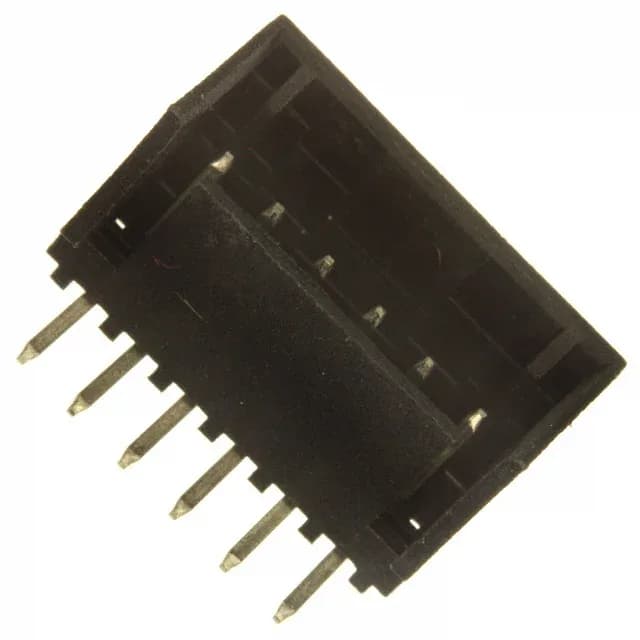

TE Connectivity AMP Connectors MTA-100 header, 2-644488-6, 6 positions, 0.100" (2.54mm) pitch, single row, right-angle through-hole, shrouded 4-wall, friction lock, tin-plated male pins, UL94 V-0 polyester housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.200\" (5.08mm) |
The 2-644488-6 is a single-row, 6-position header from TE's MTA-100 series, built for board-to-cable/wire connections. A friction lock on the top holds the pair mated without a secondary latch — it clicks into the receptacle's detent and releases with a flat-blade screwdriver, which is a field-service-friendly detail. The 0.130" (3.30mm) solder tail length suits standard 1.6mm-thick boards.
The mating pitch is 0.100" (2.54mm), which is the standard for the MTA-100 series. Board layout and mating receptacle selection both start from this value.
