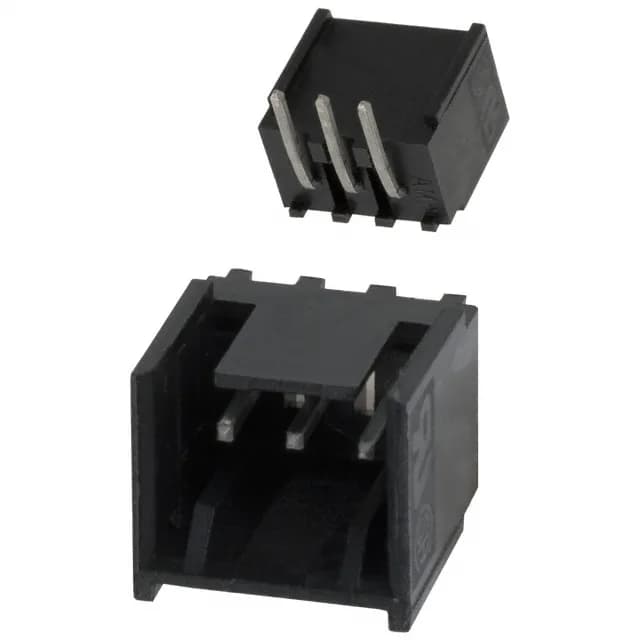

TE Connectivity AMP Connectors MTA-100, Header, 3 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Friction Lock, Tin Mating Finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.200\" (5.08mm) |
The friction lock on the shroud engages with the matching MTA-100 receptacle housing, giving a positive tactile click that resists cable pull-out without needing a secondary latch. The 0.200" (5.08mm) mating pin length provides enough wipe for reliable contact with the receptacle's tin-plated female terminals.
Yes. This is a shrouded header from the MTA-100 series, designed to mate with MTA-100 receptacle housings that accept the matching crimp terminals. The friction lock engages with the receptacle's locking ramp.
