TE Connectivity AMP Connectors 2-644803-6 — Pin Headers

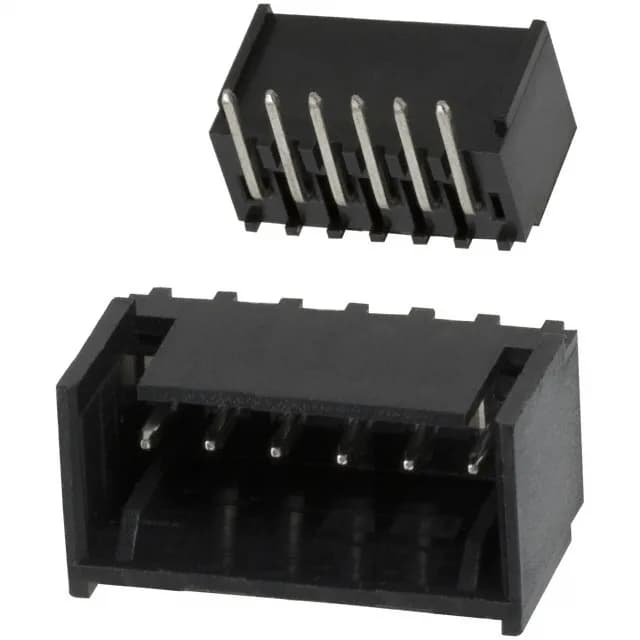

2-644803-6 TE Connectivity MTA-100 Header, 6 Pos

MPN2-644803-6
Active

TE Connectivity AMP Connectors MTA-100 series, 2-644803-6, Board to Cable/Wire, Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Tin Mating Contact, Friction Lock, UL94 V-0, -55°C ~ 105°C

$1.2500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-644803-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-644803-6 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.343\" (8.71mm)
Insulation materialPolyester

All specifications

2-644803-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.200\" (5.08mm)

Product details

Right-angle 0.100-inch shrouded header for wire-to-board

6-position single-row layout with full pin loading

The single-row arrangement keeps the connector narrow on the board edge, and the 0.130" (3.30mm) solder tail length suits standard 1.6mm-thick PCBs with through-hole soldering. The 0.200" (5.08mm) mating pin length provides adequate wipe inside the socket contact for reliable connection.

Sourced through independent distribution channels against your BOM quantity. The part is widely available across multiple distributor inventories given its active status and standard series.

Frequently asked questions

Is 2-644803-6 RoHS compliant and what is its operating temperature?

Yes, it is ROHS3 compliant.

What is the pinout of 2-644803-6?

This is a single-row, 6-position header with all positions loaded. The pinout follows the standard MTA-100 layout — position 1 is typically marked by a polarizing key or chamfer on the housing. Refer to the TE MTA-100 application specification for exact circuit numbering.

What is the closest pin-compatible alternative to 2-644803-6?

Other 0.100" pitch, 6-position, single-row, right-angle shrouded headers from the MTA-100 series may be functionally similar, but confirm the friction lock feature and pin length match your application.
