TE Connectivity AMP Connectors 2-647123-3 — Pin Headers

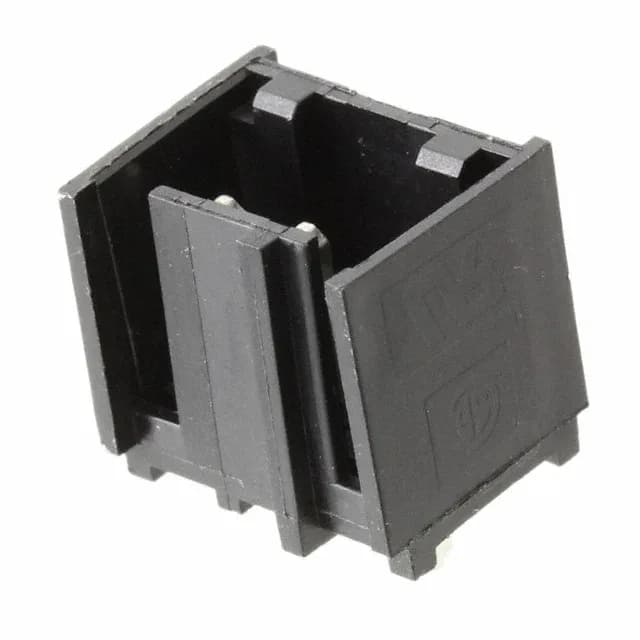

2-647123-3 TE Connectivity MTA-156 Header 3 Pos 3.96mm

MPN2-647123-3
Active

TE Connectivity AMP Connectors MTA-156 series, Board to Cable/Wire, Header, Male Pin, 3 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Friction Lock, Tin Contact Finish Mating and Post, UL94 V-0, -55°C ~ 105°C, 600VAC, Bulk

$2.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-647123-3 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.525\" (13.34mm)
Insulation materialThermoplastic, Glass Filled

All specifications

2-647123-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions3
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingTin
Contact length - mating0.300\" (7.62mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

Board-to-Wire Header for 3.96mm Pitch Harnesses

The 2-647123-3: This is a 3-position, single-row, shrouded header from the MTA-156 series, designed for board-to-wire applications. The 0.156" (3.96mm) pitch matches the MTA-156 receptacle housing and crimp terminal family, giving a direct solder-to-board interface for a 3-circuit harness.

Termination is through-hole solder, with a contact length of 0.125" (3.18mm) on the post side. The overall contact length is 0.550" (13.97mm), and the mating pin length is 0.300" (7.62mm) — enough to engage the receptacle contact fully. Both the mating and post contact finishes are tin, with a thickness of 150.0µin (3.81µm) on each side.

Temperature, Flammability, and Voltage Rating

The header is rated for 600VAC and operates from -55°C to 105°C, covering most indoor industrial and general-purpose applications.

Frequently asked questions

What is the pitch of 2-647123-3?

The pitch is 0.156" (3.96mm).

Is 2-647123-3 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mating connector for 2-647123-3?

The mating half is the MTA-156 receptacle housing (e.g., 3-640441-3 or similar) with the corresponding crimp terminals. The friction lock on the header engages with the latch on the receptacle.
