TE Connectivity AMP Connectors 2-647123-5 — Pin Headers

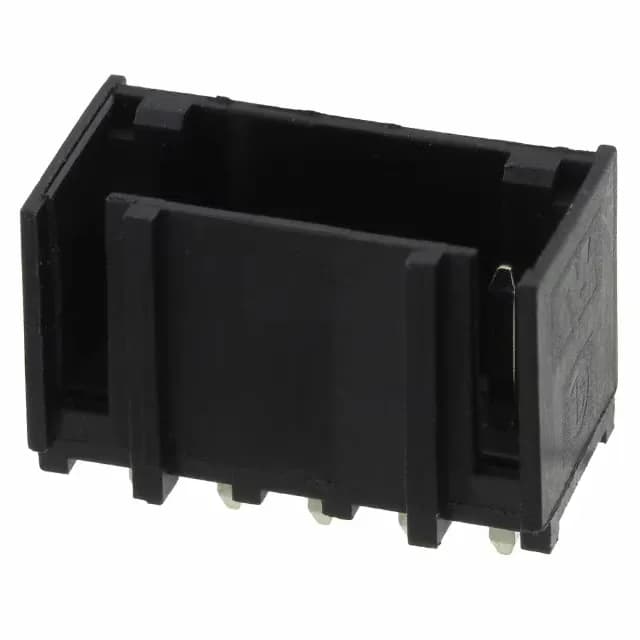

2-647123-5 TE Connectivity MTA-156 Header 5 Pos 3.96mm

MPN2-647123-5
Active

TE Connectivity AMP Connectors MTA-156 header, 2-647123-5, 5-position single-row, 0.156" (3.96mm) pitch, shrouded 4-wall, friction lock, through-hole solder termination, UL94 V-0, tin-plated contacts.

$3.2000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-647123-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-647123-5 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.525\" (13.34mm)
Insulation materialThermoplastic, Glass Filled

All specifications

2-647123-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions5
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingTin
Contact length - mating0.300\" (7.62mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

3.96mm Pitch, 5-Position Shrouded Header with Friction Lock

The 2-647123-5: The through-hole solder termination suits wave-solder assembly, and the 0.125" (3.18mm) post length gives a solid solder joint on standard 1.6mm boards.

Tin-Plated Contacts Rated for 150µin Thickness

The square contact shape ensures reliable four-point contact in the mating receptacle.

Mating Half and Friction Lock Compatibility

The 0.300" (7.62mm) mating pin length provides sufficient wipe for a stable contact interface.

Frequently asked questions

What is the mating connector for 2-647123-5?

The 2-647123-5 mates with the MTA-156 receptacle housing and matching crimp terminals.

Does 2-647123-5 have a friction lock and what is the pitch?

Yes, the header includes a friction lock for positive retention. The pitch is 0.156" (3.96mm), single row, 5 positions.
