TE Connectivity AMP Connectors 2-794618-0 — Pin Headers, Sockets & Housings

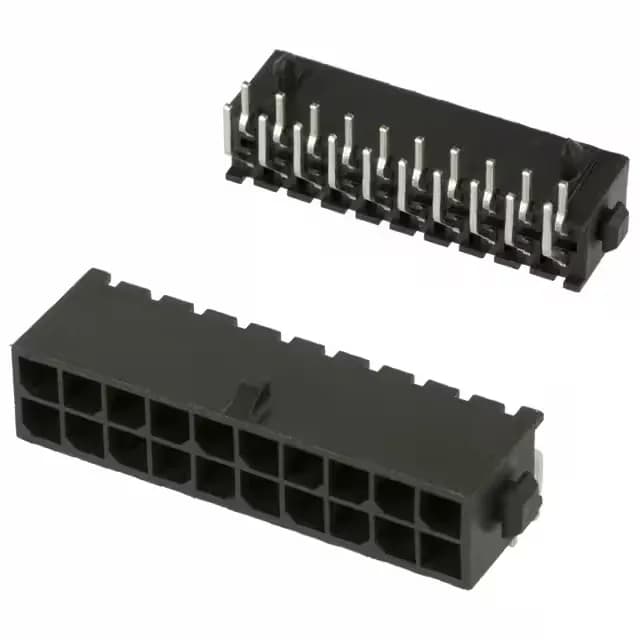

TE 2-794618-0 Micro MATE-N-LOK Header, 20 Pos, Obsolete

MPN2-794618-0
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2-794618-0, 20 positions, dual row, 0.118" (3.00mm) pitch, 250 V, tin-lead mating contacts, through-hole right-angle, solder termination.

$1.4000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-794618-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2-794618-0 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2-794618-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions20
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Right-angle through-hole header, shrouded, with board lock

The 2-794618-0 is the 20-position dual-row member of TE's Micro MATE-N-LOK header line, a board-to-cable/wire connector style with a shrouded 4-wall housing and locking ramp fastening. Contacts are tin-lead plated square pins rated 250 V; the header mounts through-hole right-angle and includes a board lock for retention during soldering.

Discontinued status and sourcing

No pin-compatible substitute from the same manufacturer is documented.

Frequently asked questions

How do I get current pricing and availability for 2-794618-0?

Availability is confirmed per RFQ through independent surplus channels. Quantities are lot-specific; submit a request for current pricing and stock.
