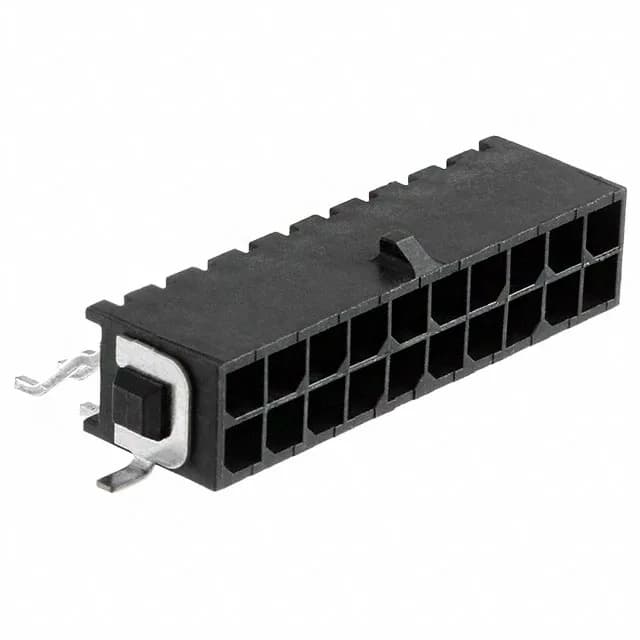

2-794628-0 TE Micro MATE-N-LOK Header, 20 Pos

MPN2-794628-0
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 20 circuits, 3.00mm pitch, right-angle SMT, gold-plated male pins, locking ramp, UL94 V-0 housing.

$0.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-794628-0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

2-794628-0 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2-794628-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions20
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20-Position Right-Angle SMT Header for Board-to-Wire

The 2-794628-0: The 3.00mm pitch and 3.00mm row spacing set the PCB footprint; the right-angle SMT orientation places the mating face parallel to the board, useful for edge-mount or low-profile harness routing. The solder tails carry a tin-lead finish, 100.0µin thick, for standard reflow soldering.

Termination is solder — the header is placed and reflowed on the PCB. The 20 positions are fully loaded — no empty slots. The insulation height of 0.290" (7.37mm) gives clearance for the receptacle body above the board.
