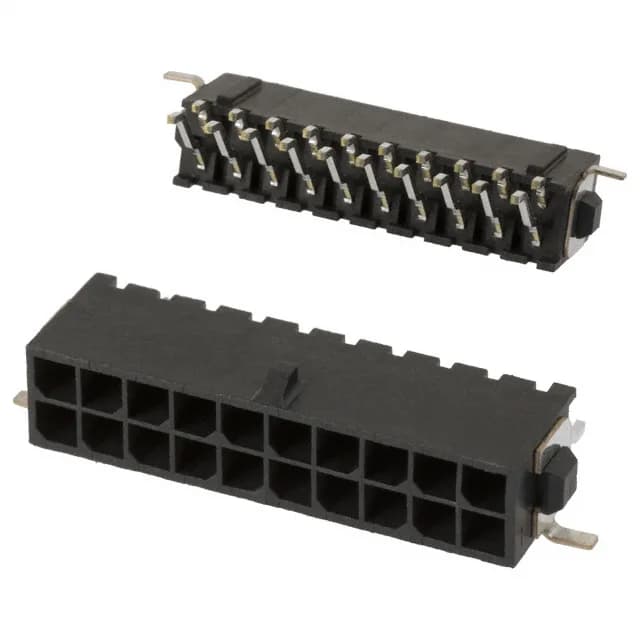

TE Connectivity AMP Micro MATE-N-LOK header, 2-794629-0, 20-circuit dual-row, 3.00mm pitch, surface-mount right-angle, shrouded 4-wall, gold-plated male pins, locking ramp.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The base product number is 794629.
Right-angle SMT orientation means the header exits the board parallel to the PCB surface, which is typical for board-edge cable routing in space-constrained enclosures.
The build-to-print BOM needs both the header and the mating receptacle with its contacts — the header alone is the board-side half. Termination is solder for the header side; the mating receptacle uses crimp terminals.
The 2-794629-0 is obsolete but available through independent distribution.
The part is obsolete; any pin-compatible alternative would need to match the 3.00mm pitch, 20 positions, dual-row, SMT right-angle footprint and the Micro MATE-N-LOK mating interface.
The pitch is 3.00mm (0.118") on both the mating and row spacing. It is a dual-row header with 20 positions total, all loaded.
