TE Connectivity AMP Connectors Micro MATE-N-LOK header, 22 circuits, 2-row, 3.00 mm pitch, shrouded 4-wall, locking ramp, through-hole press-fit/solder termination, tin-lead contacts, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

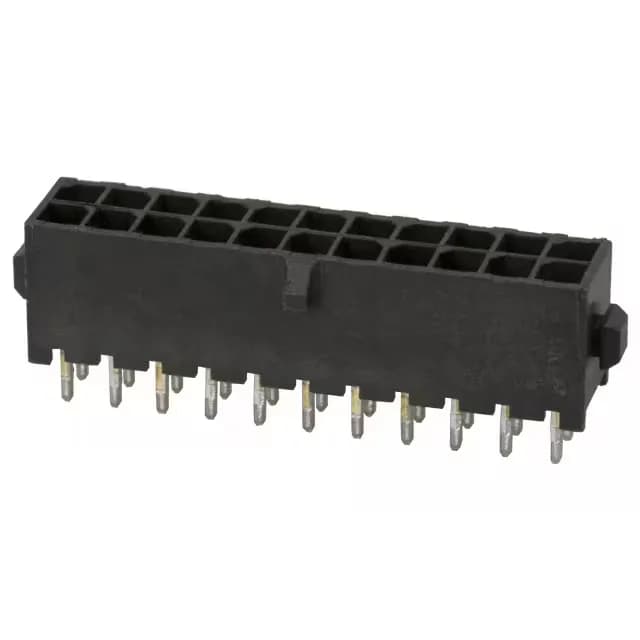

The 2-794630-2 is a 22-position, dual-row header from TE's Micro MATE-N-LOK series.
No stock-holding claim — sourced per request.
Termination is through-hole with a press-fit solder tail — the 0.125" post length suits standard PCB thickness. The dual termination style allows the header to be press-fit into the board before wave soldering, which holds alignment during reflow.
This header mates with Micro MATE-N-LOK receptacle housings that accept the matching crimp terminals.
