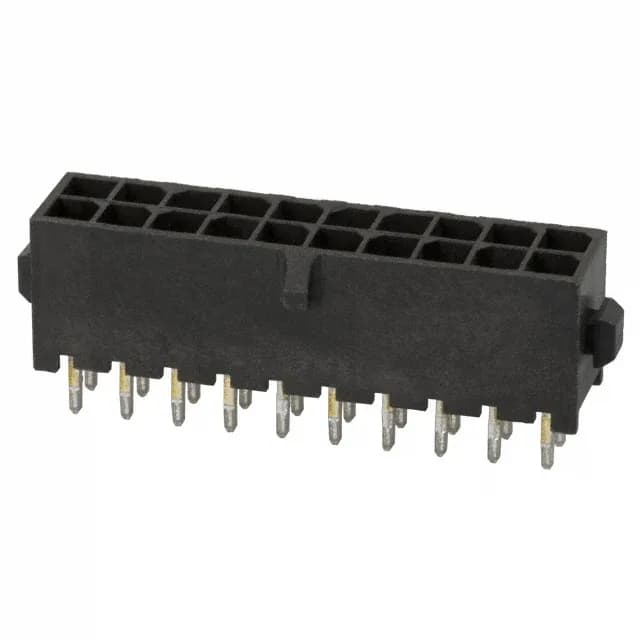

TE Connectivity AMP Micro MATE-N-LOK header, order code 2-794631-0, 20 positions, dual row, 0.118" (3.00mm) pitch, 250V, gold-plated mating contacts, through-hole, press-fit/solder termination.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2-794631-0 is the 20-position dual-row member of TE's Micro MATE-N-LOK header series, terminated through-hole with a press-fit / solder option. Gold-plated mating contacts rated 250V, 0.118" (3.00mm) pitch, shrouded 4-wall housing with locking ramp fastening.
A board spin is required for any functional replacement.
The insulation material is Polyamide (PA), Nylon rated UL94 V-0.
