TE Connectivity AMP Connectors 2-794954-4 — Connector Housings

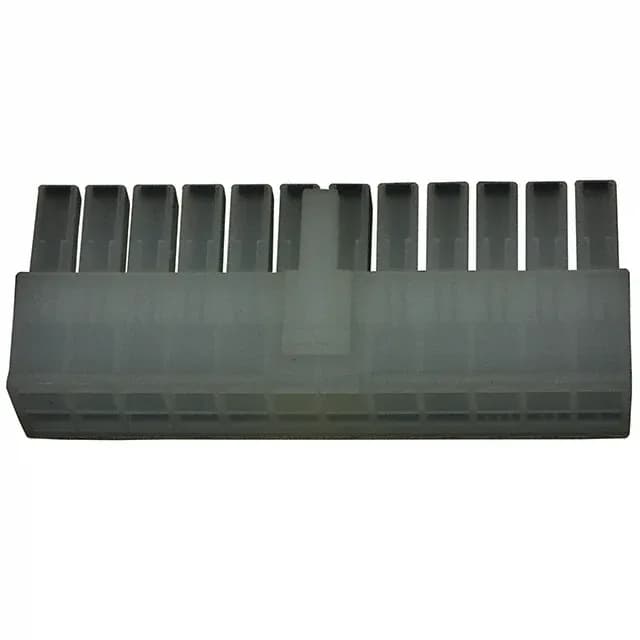

TE VAL-U-LOK 2-794954-4, 24 Pos Receptacle Housing, 4.20mm

MPN2-794954-4
Active

TE Connectivity VAL-U-LOK receptacle housing, 2-794954-4, 24 positions, 2 rows, 0.165" (4.20mm) pitch, free-hanging (in-line), latch lock, natural PA nylon, -40°C to 105°C, contacts not included.

$0.4600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-794954-4 datasheet (PDF)
RoHSRoHS Compliant
SeriesVAL-U-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-794954-4 specifications
ParameterValue
SeriesVAL-U-LOK
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows2
Contact terminationCrimp
Positions24

Product details

What This VAL-U-LOK Receptacle Housing Is

Both the pitch between adjacent positions and the row spacing are 0.165" (4.20 mm). That means the mating header's pin field is a square grid at 4.20 mm centers, which is the standard VAL-U-LOK geometry. If your board layout or mating connector uses a different pitch, this housing won't align.

Contacts Are Not Included — Plan Your Terminal Order

The listing notes contacts are not included. Order matching VAL-U-LOK crimp socket terminals separately.

Mating Connector and Latch Lock Retention

In a harness that sees machine vibration or vehicle movement, that latch is what keeps the connection from walking apart.

Frequently asked questions

What is the mating connector for 2-794954-4?

This receptacle mates with a VAL-U-LOK pin header at 4.20 mm pitch. For wire-to-wire applications, use the 794617 series header; for board-mount, use the 794606 series. The latch lock on this housing snaps onto the header's locking ramp.
