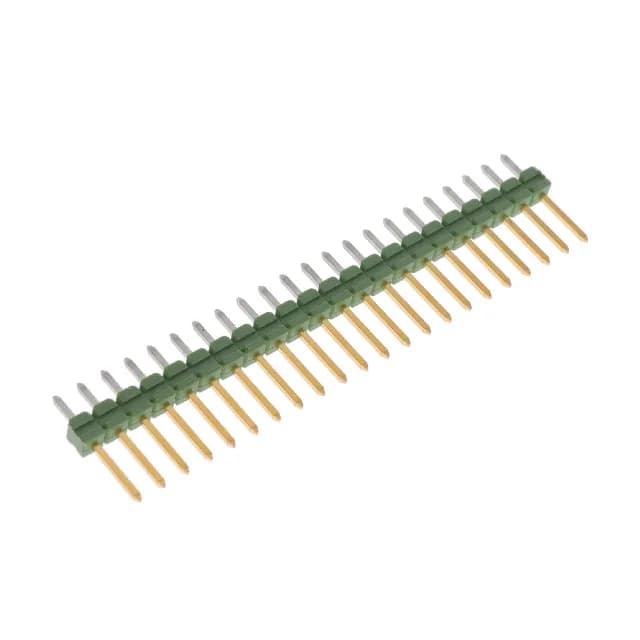

TE Connectivity AMPMODU Mod II, Header, Breakaway, 22 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Flash Mating, 5 A, UL94 V-0, Green Insulation
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | Flash |
The 2-825433-2: The breakaway design lets you snap the strip to the exact position count your board needs — 22 positions here, all loaded. Gold flash on the mating face handles repeated connect-disconnect cycles without the corrosion risk of tin in humid environments.
The UL94 V-0 flammability rating means it won't sustain flame inside equipment that requires a fire-rated enclosure.
