20-Position Unshrouded Breakaway Header, 2.54 mm Pitch
Termination is through-hole solder, suitable for wave or hand soldering. The brass contacts with tin-plated posts accept standard soldering processes.
The base product number is 826629.

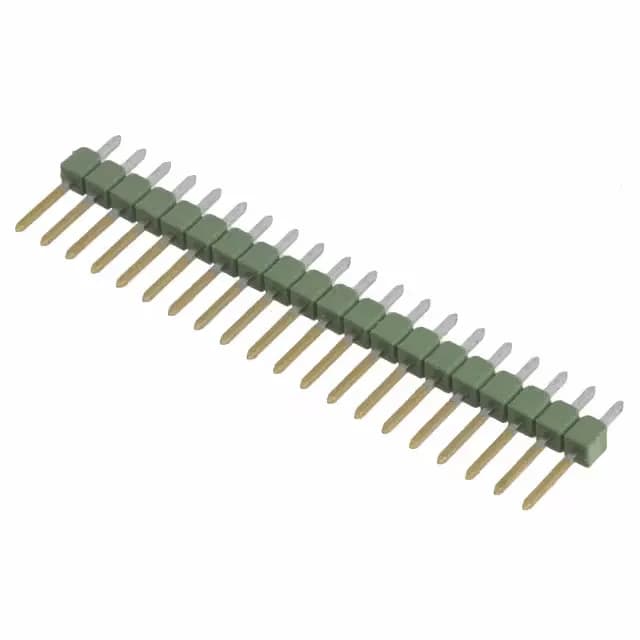

2-826629-0 TE Connectivity AMPMODU Mod II Header, 20 Pos
MPN2-826629-0
Active
TE Connectivity AMPMODU Mod II unshrouded breakaway header, 20 positions, single row, 0.100" (2.54 mm) pitch, through-hole solder termination, gold mating finish, rated 5 A, UL94 V-0.
$2.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
Is 2-826629-0 RoHS compliant?
Yes, the 2-826629-0 is ROHS3 compliant.
