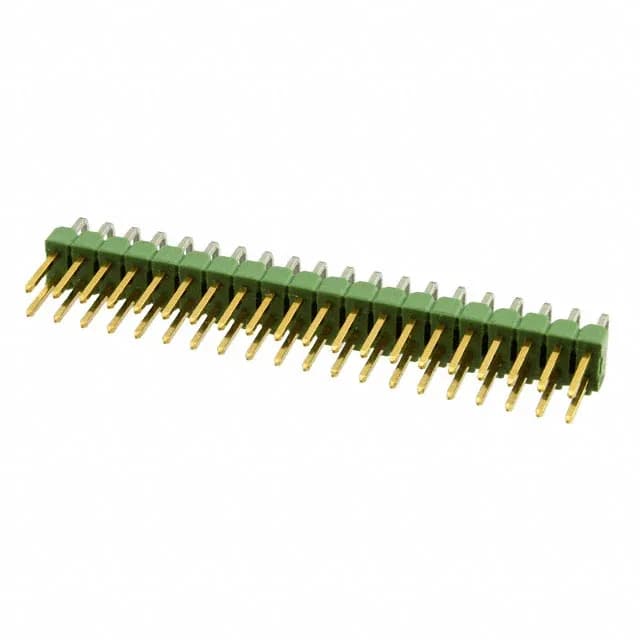

TE Connectivity AMPMODU Mod II, 40-position breakaway header, 0.100" (2.54mm) pitch, right-angle through-hole, gold-plated male pins, rated 5A, UL94 V-0 green PBT housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.219\" (5.56mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 2-826634-0: Each male pin is rated 5A continuous, with gold on the mating face (3.90µinch) and tin on the solder tails (118.1µinch).
The pinout is straightforward: two rows of 20 pins each, on 0.100" (2.54mm) row spacing. The mating pin length is 0.264" (6.70mm), and the post length below the insulator is 0.126" (3.20mm) for soldering into plated through-holes.
Yes, it is ROHS3 compliant.
All positions are loaded. The mating pin length is 0.264" (6.70mm); the solder post is 0.126" (3.20mm).
No direct second-source exists. Peer parts like 4-1775099-7 (shrouded, 4.20mm pitch, locking ramp) or 1379030-3 (shrouded, 2.54mm pitch, friction lock) are different form factors and not drop-in replacements.
