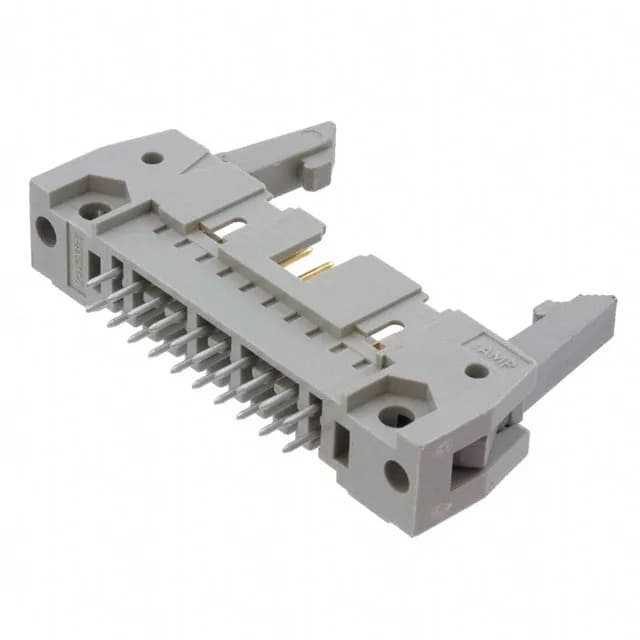

TE Connectivity AMP-Latch header, order code 2-828590-0, 20 positions, dual row, 0.100" (2.54 mm) pitch, shrouded - 4 wall, latch lock/eject hooks, through-hole, solder termination, male pin, gold or gold-palladium mating contact.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.652\" (16.56mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.246\" (6.25mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 2-828590-0 is the 20-position member of the TE Connectivity AMP-Latch shrouded header line, designed for board-to-cable/wire applications.
Availability is confirmed at RFQ through independent surplus channels; quantities are lot-specific.
The 2-828590-0 is available through independent surplus channels.
The functional replacement would require a different pinout and package — a board spin is needed.
