TE Connectivity AMP Connectors FPC connector, order code 2-84952-8, 28 positions, 0.039" (1.00mm) pitch, 1 A, 200 V, tin-plated bottom contacts, surface-mount right-angle, solder termination, ZIF slide lock.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -40°C~85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|

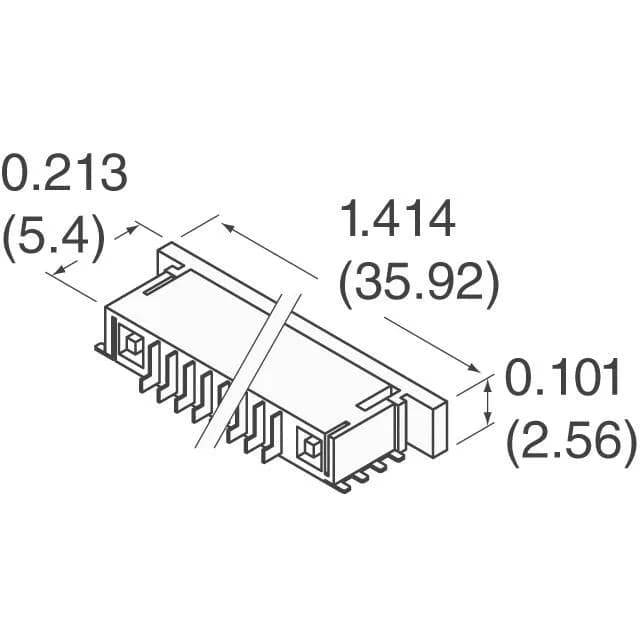

| Height above board | 0.101\" (2.56mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 28 |
| Contact finish thickness | 78.7µin (2.00µm) |
The 2-84952-8: The 0.30 mm FPC thickness and bottom-contact configuration are fixed by the connector design — the mating FPC must match both the thickness and the contact-side orientation for the ZIF mechanism to engage correctly.
The pitch is 0.039" (1.00mm).
