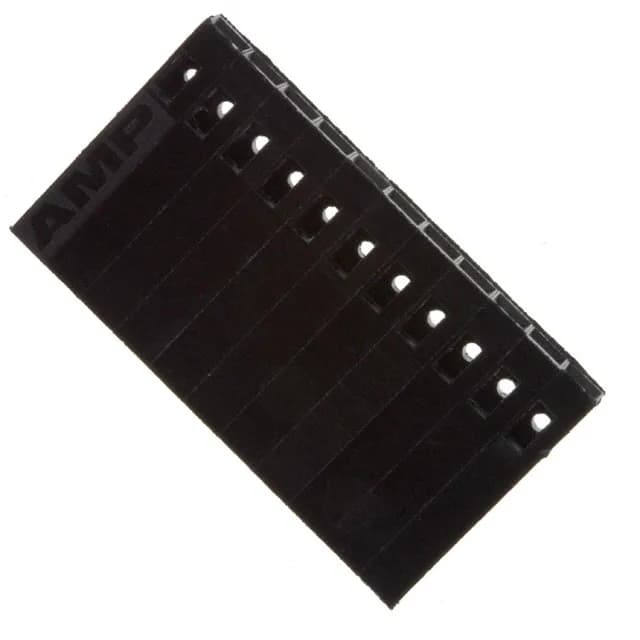

TE Connectivity AMPMODU Mod IV receptacle housing, 11 positions, single row, 0.100" (2.54mm) pitch, black thermoplastic, crimp termination, free-hanging, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 11 |
For a complete connector assembly, order the matching AMPMODU Mod IV crimp terminals separately. This is the most common sourcing miss on this line: the BOM needs a line for the housing and a separate line for the contacts.
The free-hanging design means no board mount; the housing floats in the harness and mates to a board-mounted header.
No — the housing ships without contacts. The note on this part is "Contacts Not Included." You must order the matching AMPMODU Mod IV crimp terminals separately to complete the connector assembly.
This receptacle housing mates with a matching AMPMODU Mod IV 0.100" pitch header — typically an 11-position single-row breakaway or shrouded header from the same series.
Yes, the 2-87499-0 is RoHS compliant per the current directive.
This part is sourced to order against your BOM quantity. Contact our sales team for current pricing and lead time.
