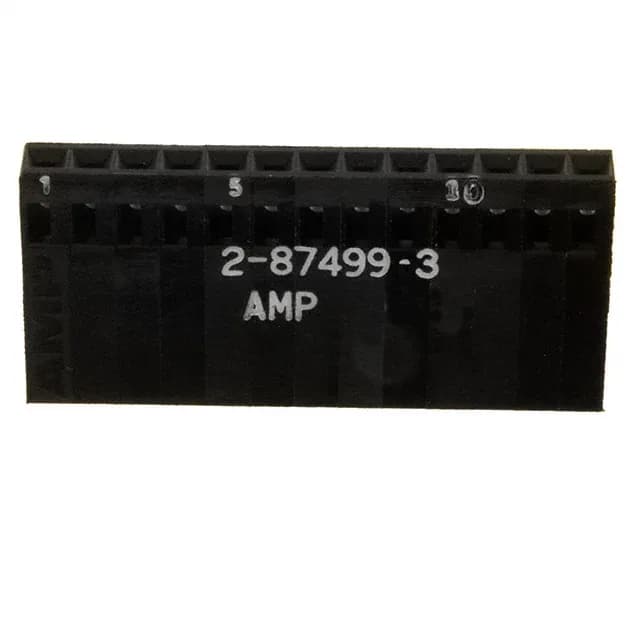

TE Connectivity AMPMODU Mod IV receptacle housing, 13 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, free hanging, black thermoplastic, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 13 |
Crimp termination means the contacts are installed with a standard hand or pneumatic crimp tool — no soldering required in the harness build. The primary latch retains the contact; a secondary lock is not present on this generation housing, so verify full contact insertion before mating.
No — the listing explicitly states 'Contacts Not Included'. You must order the matching AMPMODU Mod IV crimp terminals separately.
0.100" (2.54mm) — the standard AMPMODU Mod IV pitch, matching the header and terminal pocket spacing.
