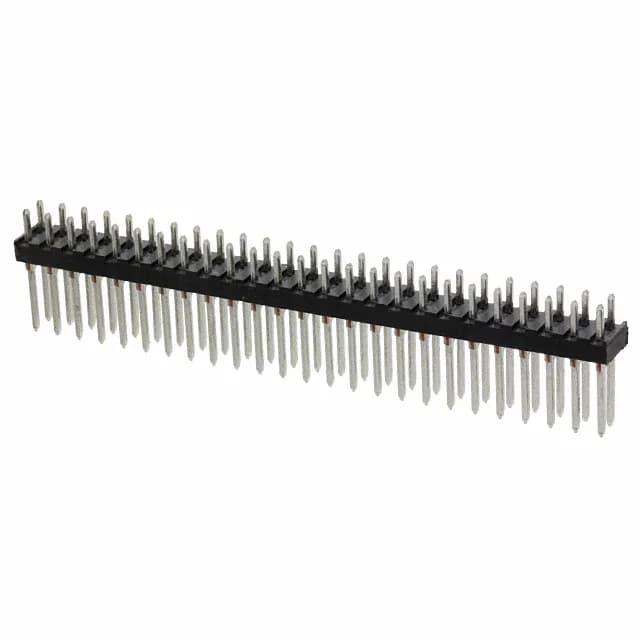

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 2-87543-5, 50 positions, dual row, 0.100" (2.54mm) pitch, tin-lead mating contacts, through hole, solder termination, unshrouded, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 2-87543-5 is the 50-position member of TE's AMPMODU Mod II header line, configured for board-to-board or board-to-cable duty with an unshrouded, push-pull interface.
No official successor or pin-compatible alternative is listed from the manufacturer.
The 2-87543-5 is available through independent surplus channels.
