TE Connectivity AMP Connectors 2-917337-2 — Pin Headers

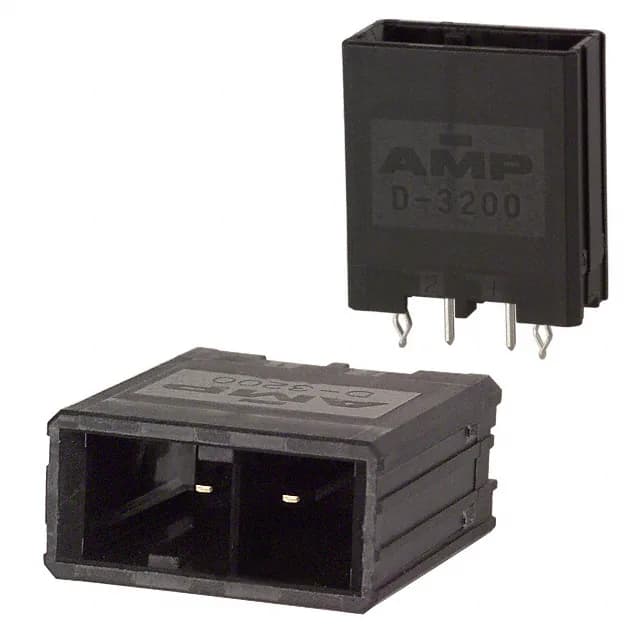

2-917337-2 TE Connectivity Dynamic D-3200 Header 2 Pos

MPN2-917337-2
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, 2-917337-2, Board to Board or Cable header, 2 circuits, 5.08mm pitch, through-hole, shrouded 4-wall, board lock, gold-plated mating contacts, UL94 V-0, -55°C to 105°C.

$2.1000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-917337-2 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-917337-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions2
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

2-position, 5.08 mm pitch — industrial power or signal pair

The 2-917337-2 is a 2-position, single-row header from TE's Dynamic D-3200 series, on a 5.08 mm pitch. That pitch is wide enough for 600 V rating and easy routing on a 2-layer board, but the 2-position count means this is for a single circuit pair — a power feed, a sensor loop, or a discrete signal line.

Board lock and gold plating — field-fit reliability

On a 2-position part the lock is less about mass retention and more about keeping the header square to the board during assembly — a crooked header means a bad mate.

Frequently asked questions

What is the pitch of 2-917337-2?

The mating pitch is 0.200" (5.08 mm). That's the centre-to-centre spacing between the two pin positions.

Does 2-917337-2 have a board lock?

Yes, it includes a board lock feature. The lock anchors the header to the PCB during soldering and helps resist pull-out forces from the mated cable.

Is 2-917337-2 RoHS compliant?

Yes, it is ROHS3 compliant.
