TE Connectivity AMP Connectors 2-917337-3 — Pin Headers

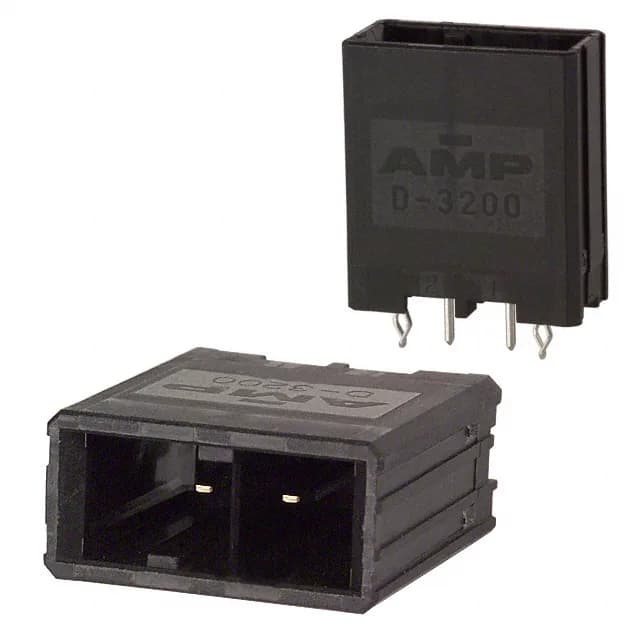

2-917337-3 TE Connectivity Dynamic D-3200 Header, 2 Pos

MPN2-917337-3
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, Board to Board or Cable, Header, 2 Positions, 0.200" (5.08mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Board Lock, Gold Mating Contact, UL94 V-0

$1.9800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-917337-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-917337-3 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-917337-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions2
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 2-917337-3: This is a single-row, 2-position header from TE's Dynamic D-3200 series, designed for board-to-board or cable connections where a 5.08mm pitch keeps the routing wide enough for 600V-rated circuits.

Footprint and mating half

The 0.200" (5.08mm) pitch means the PCB footprint is generous — two holes on 5.08mm centers, with the post length at 0.150" (3.81mm) for standard 1.6mm boards. Mated stacking heights from 31.00mm to 32.50mm give you a defined z-height budget when pairing with the matching Dynamic D-3200 receptacle.

No stock-holding claim; confirmed pricing and lead time at quote.

Frequently asked questions

What is the pitch of 2-917337-3?

The pitch is 0.200" (5.08mm) — a single-row layout with two positions.

Is 2-917337-3 RoHS compliant?

Yes, it is listed as RoHS Compliant.

Can 2-917337-3 be replaced by a similar TE connector?

The closest functional second-source in the same series is 1-1871673-2, but that part is a 4-position, dual-row, right-angle header with 2.50mm pitch and tin mating finish — different footprint and orientation. The 2-917337-3 is a 2-position, single-row, vertical header with 5.08mm pitch and gold mating finish. They are not drop-in replacements.

What is 2-917337-3's listed style and series?

The style is Board to Board or Cable, and the series is Dynamic D-3200.

Where can I buy 2-917337-3 available via RFQ confirmation?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
