TE Connectivity AMP Connectors 2-917337-5 — Pin Headers

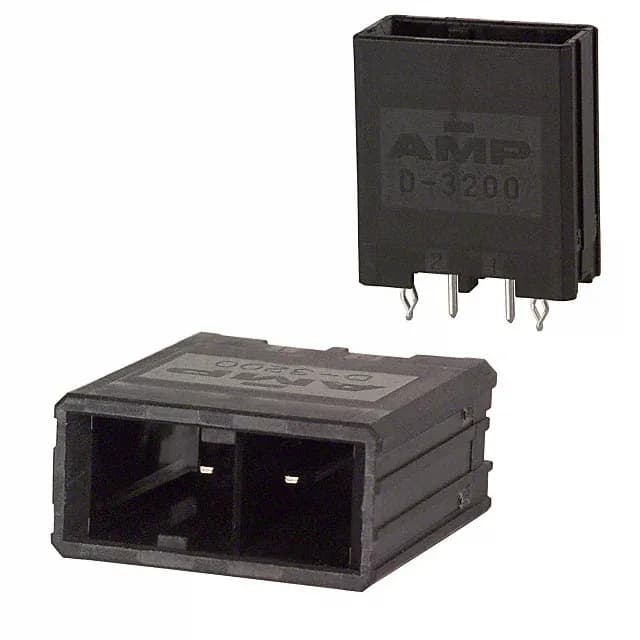

2-917337-5 TE Dynamic D-3200 Header 2 Pos 5.08mm

MPN2-917337-5
Active

TE Connectivity AMP Connectors Dynamic D-3200 header, 2 positions, 5.08mm pitch, through hole, tin-plated contacts, shrouded 4-wall, board lock, detent lock, UL94 V-0, -55°C to 105°C

$1.5000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-917337-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-917337-5 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-917337-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions2
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Through-hole header with board lock and detent

The 2-917337-5: This is a TE Connectivity AMP Connectors Dynamic D-3200 series header, 2 positions, 5.08mm pitch, through-hole termination. The detent lock gives a positive snap when the mating receptacle is pushed home.

At 5.08mm pitch, this header suits power and signal applications where board space is not the tightest constraint. The 2-position layout is common for single-pair power or signal connections. The mated stacking height range is 31.00mm to 32.50mm, which sets the board-to-board gap when used with a matching Dynamic D-3200 receptacle.

Tin-plated contacts for moderate cycling

The post finish is also tin, compatible with standard solder processes.

Frequently asked questions

Is 2-917337-5 RoHS compliant?

Yes, RoHS compliant.

Does 2-917337-5 have a board lock?

Yes, the header includes a board lock feature for through-hole solder retention.

What is the pitch of 2-917337-5?

The mating pitch is 0.200" (5.08mm).

What is the closest functional second-source for 2-917337-5?

Within the same Dynamic D-3200 series, 2-917337-3 is identical except its mating finish is gold (30.0µin) instead of tin. The board lock, detent lock, and all other specs match. For a gold-plated alternative, use 2-917337-3.
