Power-Grade Header for Industrial Harnessing

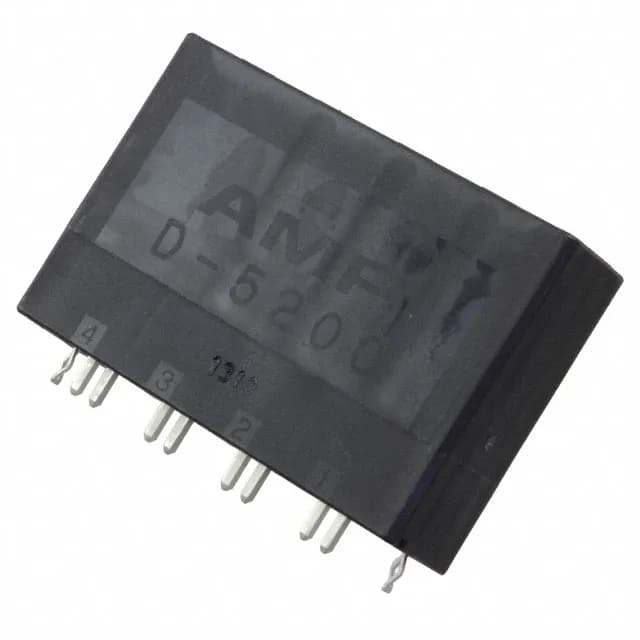

The TE Connectivity Dynamic D-5200 2-917542-3 is a 4-position, single-row tab header on a 10.16 mm pitch — a wide pitch that gives the board layout room for the 630 V rating without forcing oversized creepage slots. Rated 30 A per circuit, this is a power interconnect, not a signal line: each contact carries bus-level current for DC rails, motor drives, or industrial PSU outputs.
The 30 A per circuit at 630 V is the headline spec. The 10.16 mm pitch provides creepage distance for the full 630 V without PCB slots. The IP20 rating means the header is finger-safe but not sealed — it belongs inside a cabinet or enclosure, not in a washdown zone.
