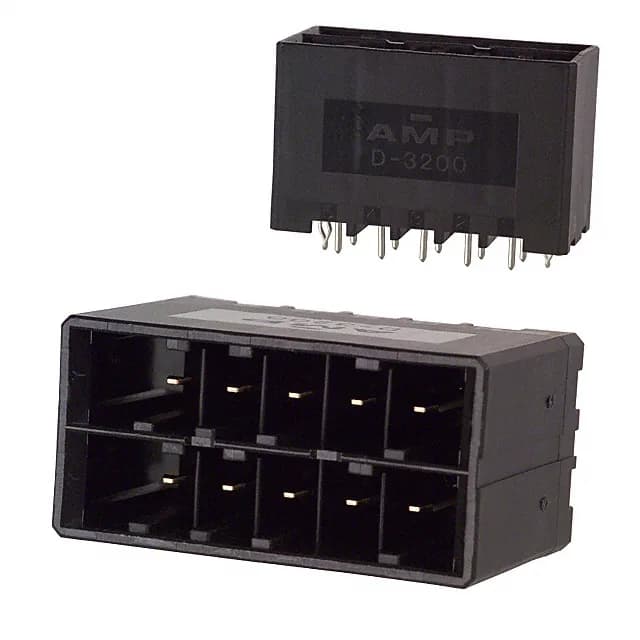

TE Connectivity AMP Connectors Dynamic D-3200, Header, 10 Positions, 5.08mm Pitch, 2 Row, Through Hole, Gold Mating, Board Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-917657-3: This 10-position, dual-row header from the Dynamic D-3200 series uses a 5.08 mm pitch and a 7.62 mm row spacing, giving the board layout engineer a clear footprint for a power or signal interconnect that needs to carry up to 600 V.
Yes, the listed RoHS status is Compliant.
This shrouded header mates with a Dynamic D-3200 receptacle. The 5.08 mm pitch and 7.62 mm row spacing must match the receptacle's contact layout.
