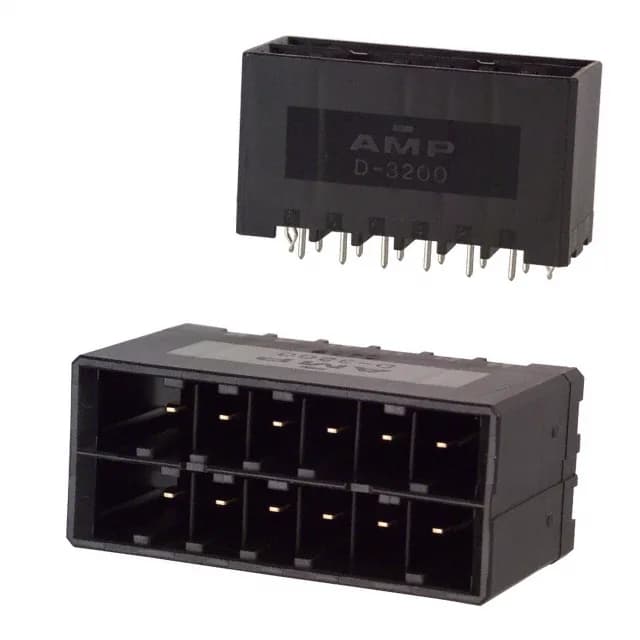

TE Connectivity AMP Connectors 2-917658-3
MPN2-917658-3
Active
$3.6176Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 12 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
