Board-to-board or cable header, 12 positions

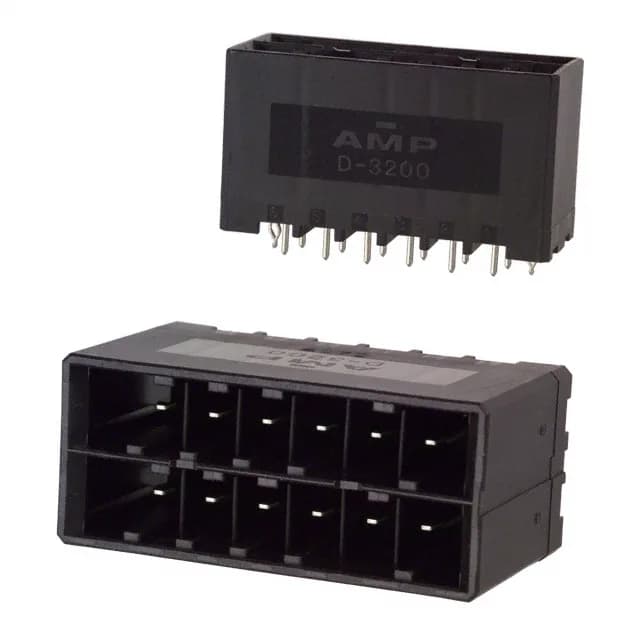

The 2-917658-5 is the 12-position dual-row member of TE's Dynamic D-3200 header series, rated for board-to-board or cable applications. Pitch is 0.200" (5.08mm) with a 0.300" (7.62mm) row spacing; the shrouded 4-wall housing carries tin-plated tab contacts rated 600 V and accepts a detent-lock mating half.
Active production, through-hole solder termination
Termination is solder through-hole; the header includes a board lock for retention during wave soldering.
