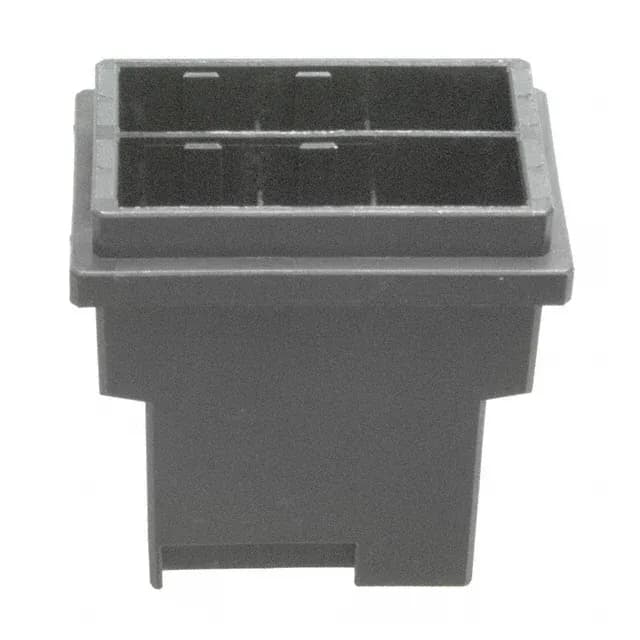

TE Connectivity Dynamic D-5200 series plug housing, 2-917808-3, 6 positions, 2 rows, 10.16mm pitch, free hanging inline mount, crimp termination, polarizing key, black thermoplastic housing, contacts not included.
| Parameter | Value |
|---|---|
| Series | Dynamic D-5200 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Row spacing | 0.400\" (10.16mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
The 10.16 mm pitch and 0.400" row spacing give it generous clearance for larger-gauge power wiring, and the polarizing key prevents accidental mismating with non-keyed counterparts in multi-connector harnesses.
Termination is crimp-style, meaning the male pin contacts are attached to the wire ends with a crimp tool before insertion into the housing.
The pitch is 10.16 mm (0.400"), with the same 0.400" row spacing between the two rows of positions.
