Dynamic D-5200 Plug Housing — 6 Circuits at 10.16 mm Pitch

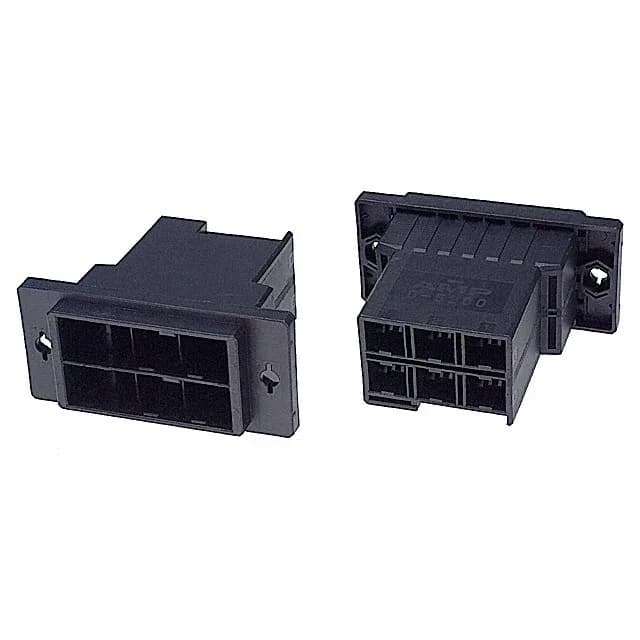

The TE Connectivity 2-917809-3 is a 6-position plug housing from the Dynamic D-5200 series, built for wire-to-wire or wire-to-board power interconnects where the 10.16 mm pitch gives the creepage distance for higher-voltage circuits.
What the 10.16 mm Pitch Means for the Build
The 10.16 mm pitch and matching row spacing are the same dimension — 0.400" — which means the contact pattern is square.
Panel Mount and Crimp Termination
No soldering, no PCB footprint; the assembly is a field-serviceable harness connector. The crimp termination (tab-style contacts, not included) means you select the terminal separately based on wire gauge and current requirement. The housing itself is the insulator and retention shell; the polarizing key and the panel-mount flange keep orientation fixed during mating.
