TE Connectivity AMP Connectors 2-962349-1 — Connector Housings

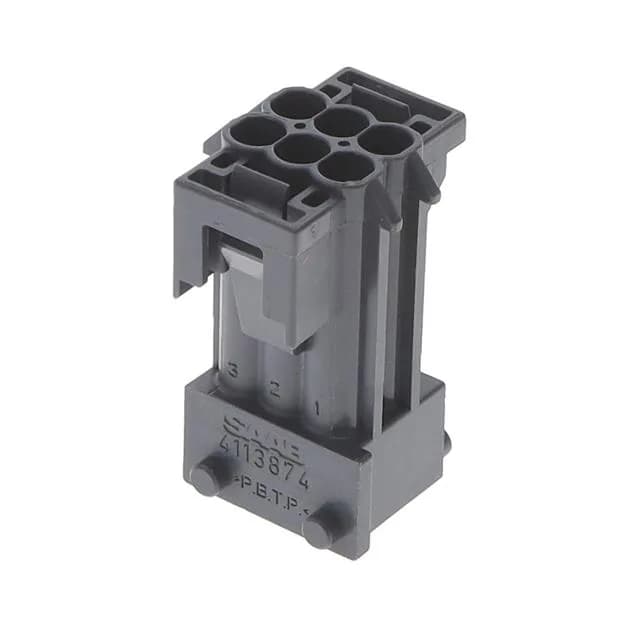

TE Junior Timer 2-962349-1, 6-Pos Plug Housing, Gray

MPN2-962349-1
Active

TE Junior Timer plug housing, 2-962349-1, 6 positions, 2 rows, 3mm pitch, gray PBT-GF, latch lock, free-hanging, crimp termination, contacts not included.

$1.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesJunior Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-962349-1 specifications
ParameterValue
SeriesJunior Timer
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBulk
Rows2
Contact terminationCrimp
Positions6

Product details

6-Position Dual-Row Plug Housing for Harness Builds

Contacts are not included — the crimp terminals (tab type) must be ordered separately, and the housing accepts them after wire termination.

Housing Construction and Termination

Molded from glass-filled PBT, the housing is for free-hanging use. The 3 mm centerline pitch matches the Junior Timer receptacle and crimp terminal pocket geometry.

Mating and Fastening

For environments with high vibration or thermal cycling, the latch provides enough retention to keep the pair mated without additional hardware.

Frequently asked questions

Does 2-962349-1 include contacts?

No. The listing explicitly notes 'Contacts Not Included'. The crimp tab terminals must be ordered separately — typically TE part numbers from the Junior Timer terminal family (e.g., 1-963715-1 or similar).

What is the mating connector for 2-962349-1?

The mating half is a Junior Timer receptacle housing with 6 positions in 2 rows, also free-hanging, with female socket contacts. The latch lock on the plug engages the receptacle's locking ramp.

Is 2-962349-1 RoHS compliant?

Yes, it is ROHS3 compliant.
