TE Connectivity AMP Connectors 2-967616-1 — Connector Housings

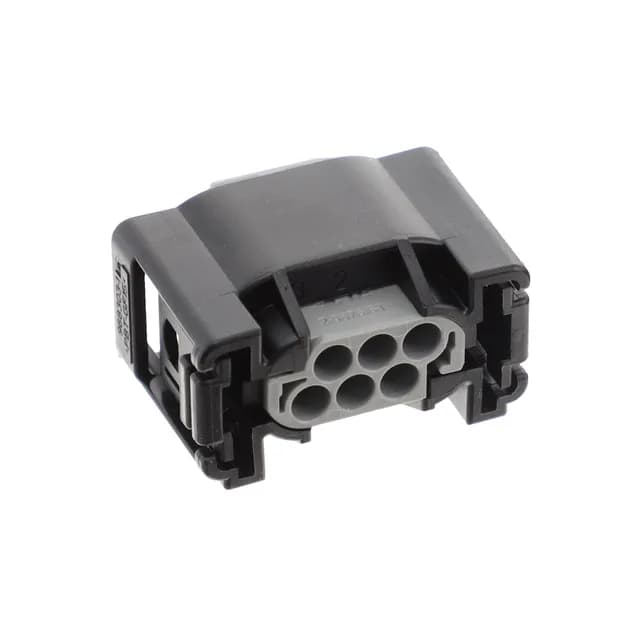

TE Micro Quadlok 2-967616-1, 6 Pos Receptacle Housing

MPN2-967616-1
Active

TE Connectivity Micro Quadlok receptacle housing, 6 positions, 2 rows, 0.157" (4.00mm) pitch, gray, sealed, free-hanging, crimp termination, contacts not included.

$1.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-967616-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 120°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.157\" (4.00mm)
PackageBulk
FeaturesSealed
Row spacing0.138\" (3.50mm)
Rows2
Contact terminationCrimp
Positions6

Product details

The 4.00 mm pitch and 3.50 mm row spacing give it enough room for the rubber wire seals that keep moisture and dust out of the cavity — the housing itself is listed as sealed, meaning the interface between the receptacle and its mating header is protected against splash and spray when properly assembled with the correct seals and contacts. The gray PBT, glass-filled shell handles the -40°C to 120°C operating range common to underhood and industrial cabinet applications.

The housing itself has no latches or locking ramps listed in the spec, so the mating header's locking feature provides the retention.

Frequently asked questions

What contacts fit 2-967616-1 Micro Quadlok housing?

The housing accepts female socket contacts terminated by crimp. The contacts are not included with this housing and must be ordered separately as Micro Quadlok crimp terminals.

Is 2-967616-1 a sealed connector?

Yes, the housing is listed with a Sealed feature, meaning the mated interface is protected against moisture and dust ingress when assembled with the correct wire seals and mating header.

Where can I buy 2-967616-1 Micro Quadlok housing?

This part is sourced to order.
