TE Connectivity AMP Connectors 2-967650-1
MPN2-967650-1
Active

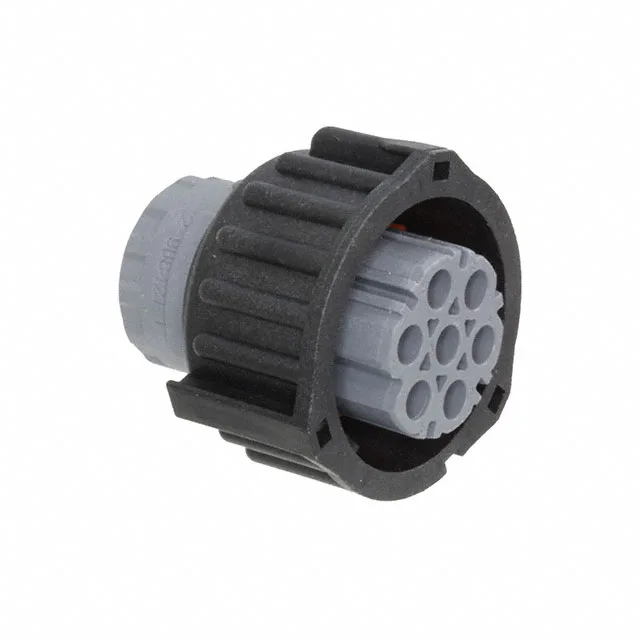

CONN PLUG HSNG FMALE 7POS INLINE
$3.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series1.5mm System
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | 1.5mm System |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Operating temperature | -40°C ~ 120°C |
| Housing color | Black, Gray |
| Shell material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 HB |
| Note | Contacts Not Included |
| Package | Bulk |
| Features | Coupling Nut |
| Shielding | Unshielded |
| Orientation | B |
| Contact size | 1.5mm |
| Contact shape | Circular |
| Positions | 7 |
