19-Pin HDMI Type A Receptacle for Board-Edge Mounting

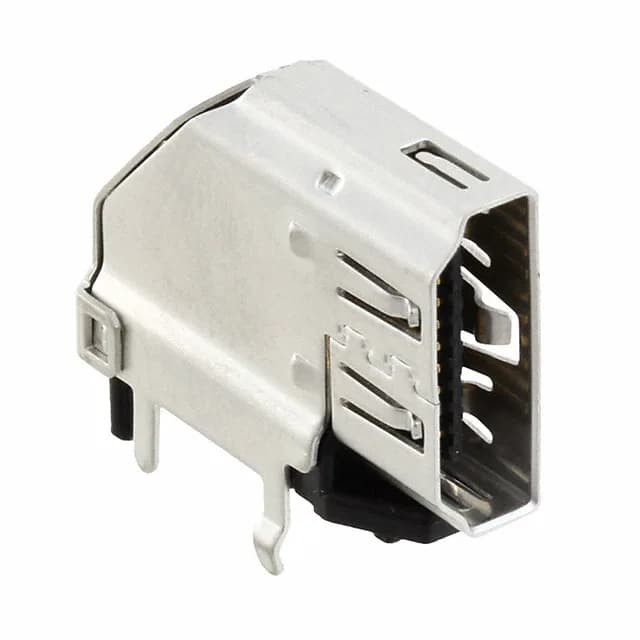

The TE Connectivity 2007435-3 is a 19-contact HDMI Type A receptacle — the standard full-size HDMI connector found on PC motherboards, graphics cards, media players, and display input panels. It is a shielded, right-angle, through-hole mount part with a board lock feature and an integrated cover, designed for permanent soldered attachment to a PCB edge. The 19 contacts follow the standard HDMI Type A pinout, carrying signal lines plus the +5V power and hot-plug detect.
Board Lock and Shielding — What They Mean for Assembly
The steel and stainless steel shell provides continuous shielding around the contact area.
Current and Voltage — Signal Duty, Not Power
Rated 0.5A per contact at 40VAC, this connector is sized for HDMI signal lines and the +5V supply pin — not for charging or high-current pass-through. The 0.5A per-contact limit is typical for HDMI receptacles and reflects the fine-pitch contact geometry and the need to keep temperature rise low inside the shielded shell. For applications requiring power delivery over HDMI (e.g. HDMI with Power over Cable), this part is not the right choice; it is built for standard AV signal paths where the current draw per pin stays under half an amp.
