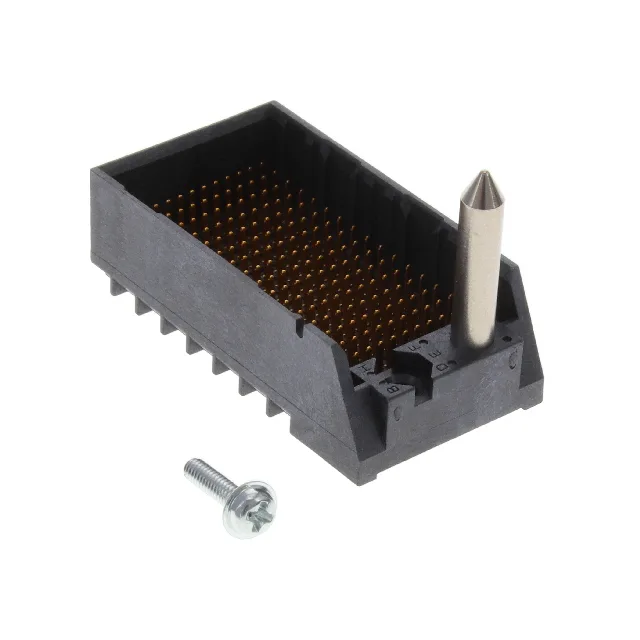

TE Connectivity AMP Connectors 2007827-1
MPN2007827-1
Active
IMP100S,H,V4P16C,LG,REW39,4.5
$22.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesImpact
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Impact |
| Mounting | Through Hole |
| Connector type | Impact, Guide Left |
| Voltage rating | 29.9VAC/DC |
| Current rating | 0.75A per Contact |
| Connector usage | Backplane |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.075\" (1.90mm) |
| Package | Bulk |
| Features | Guide Pin |
All specifications
| Parameter | Value |
|---|---|
| Termination | Press-Fit |
| Contact finish | Gold |
| Rows | 12 |
| Number of columns | 16 |
| Positions | 192 |
| Contact layout, typical | 128 Signal, 64 Ground |
| Contact finish thickness | 30.0µin (0.76µm) |
