TE Connectivity AMP Connectors 2013655-1 — USB, Type-C & HDMI Connectors

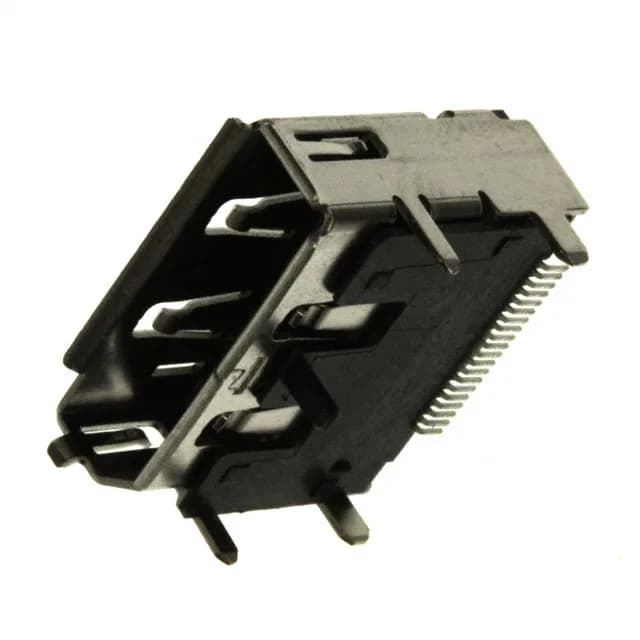

TE Connectivity 2013655-1 DisplayPort Receptacle

MPN2013655-1
Obsolete

TE Connectivity DisplayPort receptacle, 20 contacts, 0.5A per contact, 40VAC, gold contact finish, 10000 mating cycles, surface mount right angle / through hole, tray.

$3.5300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2013655-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

2013655-1 specifications
ParameterValue
MountingSurface Mount, Right Angle; Through Hole
Connector typeDisplayPort
Voltage - rated40VAC
Current rating0.5A per Contact
Positions20
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Guide
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsDisplay Port 1.1a
Number of ports1

Product details

DisplayPort Receptacle for Board-Edge Integration

The TE Connectivity 2013655-1 is a 20-contact DisplayPort receptacle built to the Display Port 1.1a specification. It carries 0.5A per contact at 40VAC, with gold-plated contacts rated for 10000 mating cycles — a durability figure that suits test fixtures, docking stations, or any port that sees frequent reconnects.

This receptacle mounts horizontally with a combination of surface-mount and through-hole solder tails — the SMT pads handle the signal contacts, while the through-hole posts anchor the shell to the board for mechanical retention.

Frequently asked questions

What is the mating cycle rating of 2013655-1?

The 2013655-1 is rated for 10000 mating cycles, which is well above standard DisplayPort connectors — this makes it suitable for applications like test equipment or docking stations where frequent plugging and unplugging is expected.
