TE Connectivity AMP Connectors 2029030-3 — Pin Headers

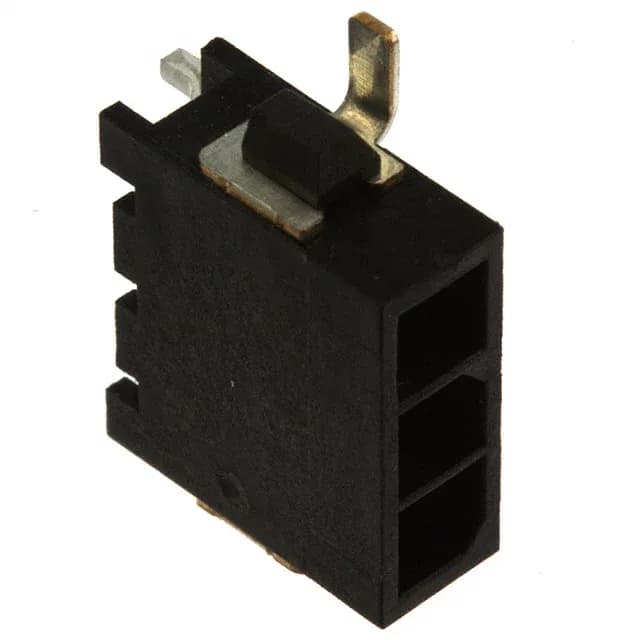

2029030-3 TE Connectivity Micro MATE-N-LOK Header SMD R/A

MPN2029030-3
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2029030-3, 3 circuits, 3.00 mm pitch, surface-mount right-angle, shrouded 4-wall, locking ramp, tin-plated square pins, UL94 V-0.

$1.0700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2029030-3 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.152\" (3.85mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2029030-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions3
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

3.00 mm pitch SMD right-angle header with locking ramp

The 2029030-3: This is a 3-position, single-row header from the Micro MATE-N-LOK series, designed for board-to-cable/wire applications. The shrouded 4-wall design and locking ramp fastening provide positive retention against vibration-induced disconnect — you should hear it click when mated with the corresponding Micro MATE-N-LOK receptacle housing. The square male pins are brass.

Solder retention and UL94 V-0 housing

Operating temperature range is -40°C to 105°C.

Active production, ROHS3 compliant

Sourced per RFQ — current pricing and lead time confirmed at quote.

Frequently asked questions

Is 2029030-3 RoHS compliant and what is its operating temperature?

Yes, it is ROHS3 compliant. Operating temperature range is -40°C to 105°C.

What is the mating connector for 2029030-3?

It mates with a Micro MATE-N-LOK receptacle housing (crimp-style, sold separately) that accepts the corresponding male pin terminals. The locking ramp on the header engages the receptacle latch for a vibration-resistant connection.
