4-circuit Micro MATE-N-LOK
The 2029030-4 is the 4-circuit member of TE's Micro MATE-N-LOK board-to-wire header line. It uses tin-plated mating contacts rated 250 V, mounts surface-mount right-angle, and terminates by solder.

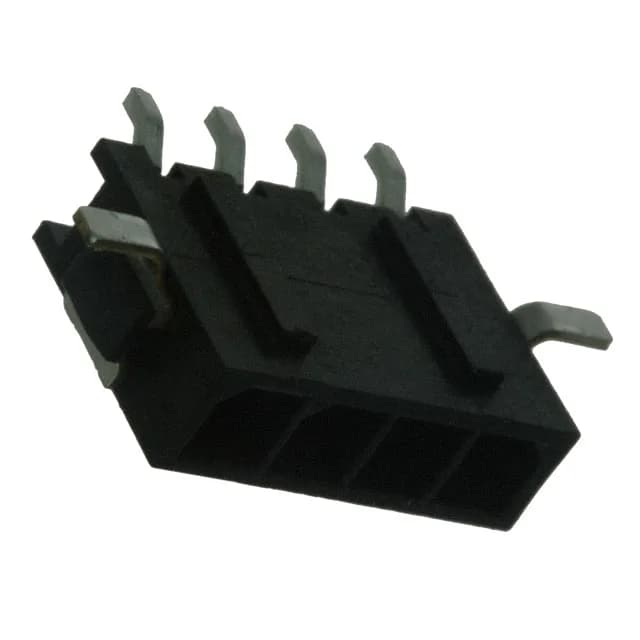

TE 2029030-4 Micro MATE-N-LOK Header, 4 Pos, 3.00mm
MPN2029030-4
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2029030-4, 4 positions, single row, 3.00 mm pitch, 250 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
$1.7500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 2029030-4?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
