Receptacle Housing for Micro MATE-N-LOK Systems

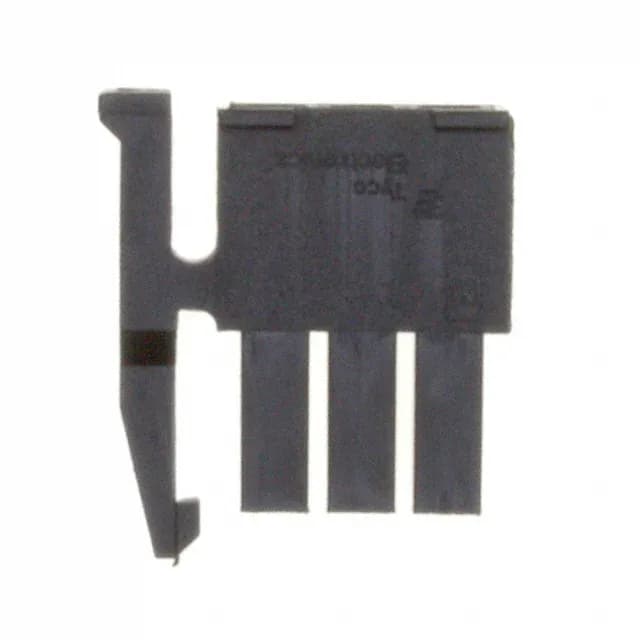

The TE Connectivity 2029047-3 is a 3-position, single-row receptacle housing from the Micro MATE-N-LOK series, designed for wire-to-board and wire-to-wire interconnect applications where a compact, reliable latch-lock connection is needed. The 3.00 mm pitch balances routing density with sufficient creepage for the operating voltage range typical of this connector family, making it a common choice for power and signal distribution inside industrial control cabinets, automotive body electronics, and white goods. The latch lock provides positive retention against vibration without requiring a secondary locking mechanism, though the housing does not include a terminal position assurance (TPA) retainer.
Sourcing the Correct Crimp Contacts
This housing ships without contacts — the listing explicitly notes 'Contacts Not Included'. The mating female socket terminals for the Micro MATE-N-LOK series are ordered separately by wire gauge.
Mating Plug and System Compatibility
The mating half for this receptacle is a Micro MATE-N-LOK plug housing with male pin contacts — the 3-position version carries the base number 2029048-3 (verify the exact suffix for keying and color). For a panel-mount or board-mount version, the header variant (e.g., 2029049-3) provides through-hole or surface-mount pins that align with the same housing latch.
