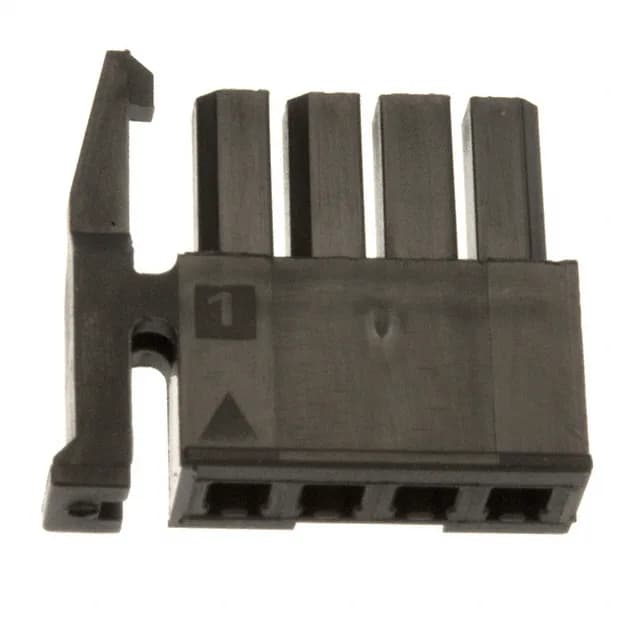

TE Connectivity AMP Connectors Micro MATE-N-LOK, Receptacle, 4 Positions, 0.118" (3.00mm) Pitch, 1 Row, Free Hanging (In-Line), Crimp, Latch Lock, Black, -40°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
Pitch is 3.00 mm, which matches the standard Micro MATE-N-LOK header footprint and keeps the wire-to-board transition compact.
The housing accepts crimp contacts terminated to discrete wires. Mates with a Micro MATE-N-LOK male header (through-hole or SMT) on the PCB.
Confirm the BOM quantity and the mating header part number before ordering.
Use Micro MATE-N-LOK female crimp socket terminals. The housing accepts contacts terminated to discrete wires via a standard crimp tool.
The 2029047-4 mates with a Micro MATE-N-LOK male header (through-hole or SMT) on the PCB.
