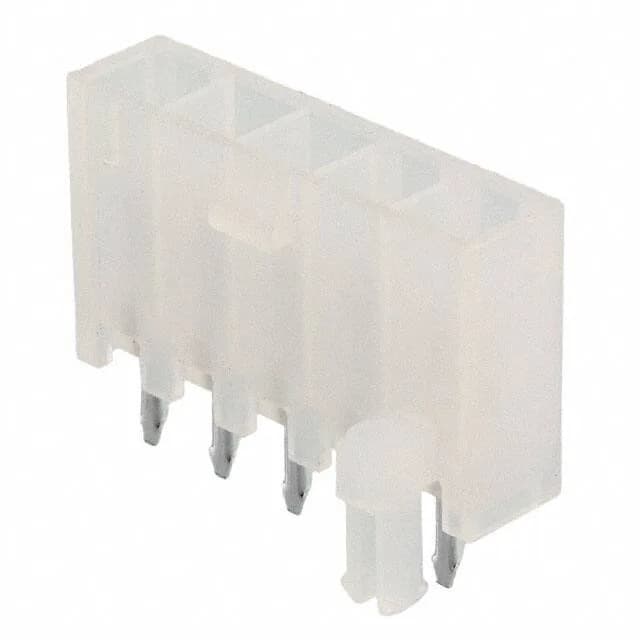

TE Connectivity VAL-U-LOK header, order code 2029058-5, 5 positions, single row, 4.20 mm pitch, 9 A, 600 VAC, tin-plated mating contacts, through-hole vertical, solder termination, board lock, locking ramp shroud.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C~105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 2029058-5 is the 5-circuit member of TE Connectivity's VAL-U-LOK header line, a shrouded single-row board-to-wire header rated 9 A per circuit at 600 VAC. Tin-plated brass contacts on both mating and solder sides, through-hole vertical mounting, and a locking ramp shroud with board lock for retention during assembly.
Yes, the 2029058-5 is ROHS3 compliant.
