2-position SMD right-angle header for wire-to-board

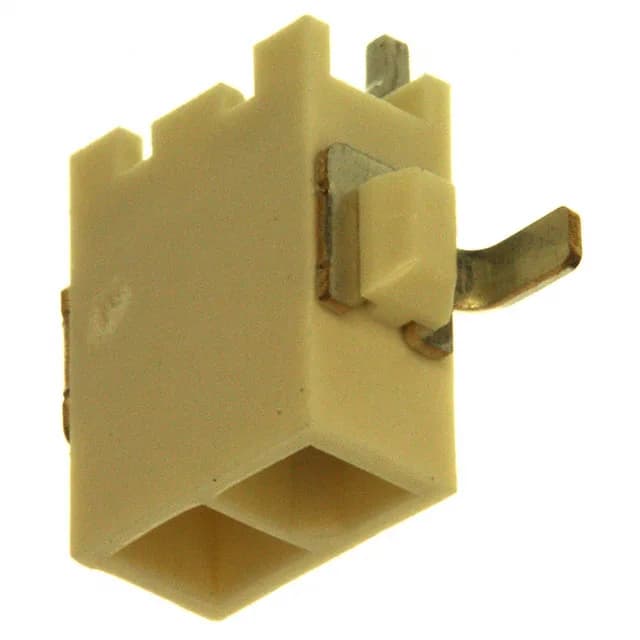

The 2029076-2 is a 2-position, single-row header from the Micro MATE-N-LOK series, on a 3.00mm pitch. It terminates via surface-mount solder, right-angle to the board, so the mated cable exits parallel to the PCB — useful where vertical clearance is tight. The locking ramp on the shroud holds the mating plug securely; the shrouded 4-wall design protects the pins during handling and alignment.
Rated 250V, temp range -40 to 105°C
Voltage rating is 250V, and the operating temperature spans -40°C to 105°C — wide enough for most indoor equipment and general-purpose enclosures. Contact finish is 100.0µin tin on both mating and post sides; the brass square pins handle repeated insertion without galling in moderate-cycle applications. The housing is rated UL94 V-0 for flammability, and the part is ROHS3 compliant.
Active production, sourced per RFQ
Sourced to order against your BOM quantity — confirm the mating half (Micro MATE-N-LOK plug with crimp terminals) and the board footprint before committing.
