TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2029104-2, 2 positions, 3.00 mm pitch, surface-mount right-angle, shrouded 4-wall, tin-plated contacts, solder retention, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Natural |

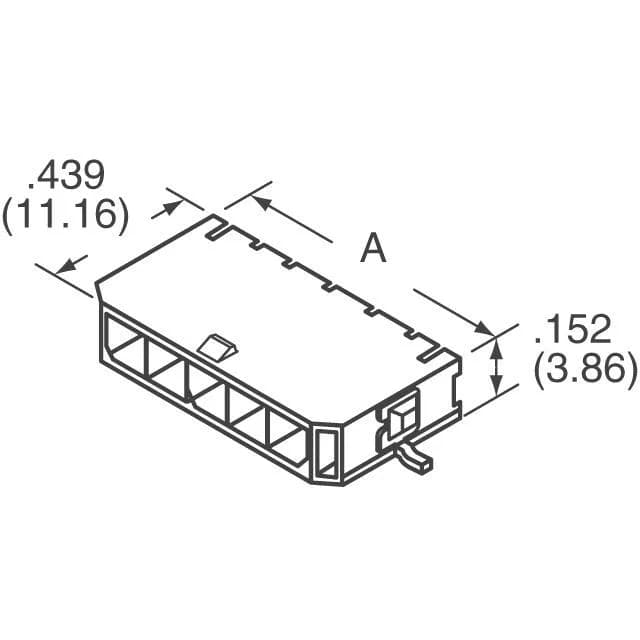

| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 2029104-2: It mates with the corresponding Micro MATE-N-LOK receptacle housing to create a board-to-cable connection.
The 2-position single-row layout is common for power or signal jumpers in appliances, automotive interior modules, and industrial control panels.
Yes, the part is ROHS3 compliant per TE Connectivity's declaration.
It mates with a Micro MATE-N-LOK receptacle housing (2-position, single-row) that accepts crimp terminals. The receptacle part number depends on the wire gauge and locking feature needed; the series is consistent at 3.00 mm pitch.
