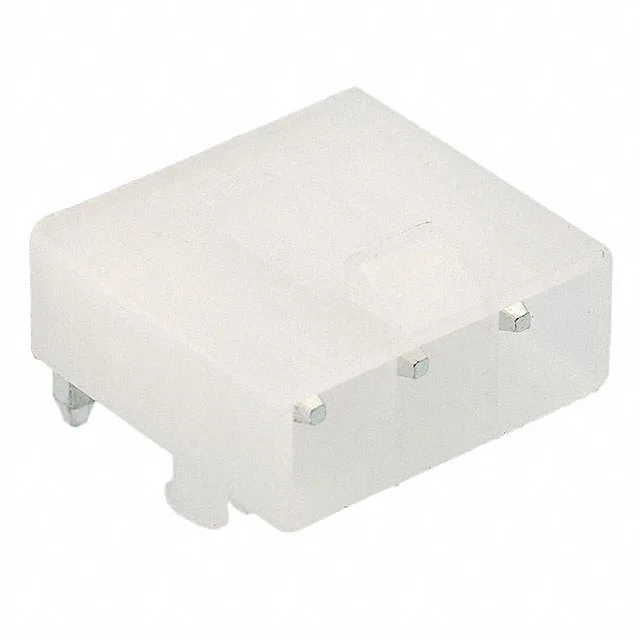

2029150-3 - TE Connectivity AMP Connectors
MPN2029150-3
Active
$0.3517Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
