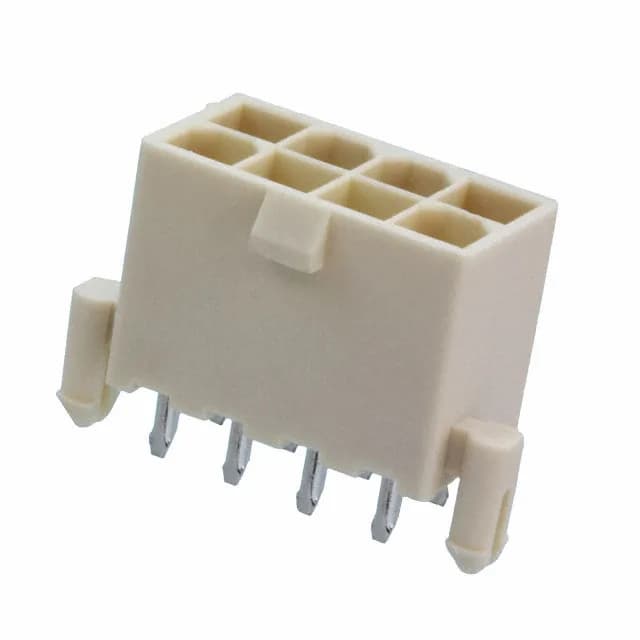

TE Connectivity VAL-U-LOK 2029265-8, 8-position, dual-row, shrouded header, 0.165in (4.20mm) pitch, 9 A per circuit at 600VAC, tin-plated brass contacts, locking ramp, board-lock, glow-wire compliant, UL94 V-0 white nylon housing, -40 to 105 degC, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 8 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The TE Connectivity VAL-U-LOK 2029265-8 is an 8-position, dual-row shrouded header on 0.165in (4.20mm) pitch, rated 9 A per circuit at 600VAC. It uses tin-plated brass contacts with a locking ramp fastening type and includes board locks for secure PCB retention during wave solder.
The peer 4-1775099-7 is a 20-position dual-row header from the same VAL-U-LOK series, matching the 4.20mm pitch, 9 A rating, locking ramp, and UL94 V-0 housing. For an 8-position requirement, 2029265-8 is the direct fit.
