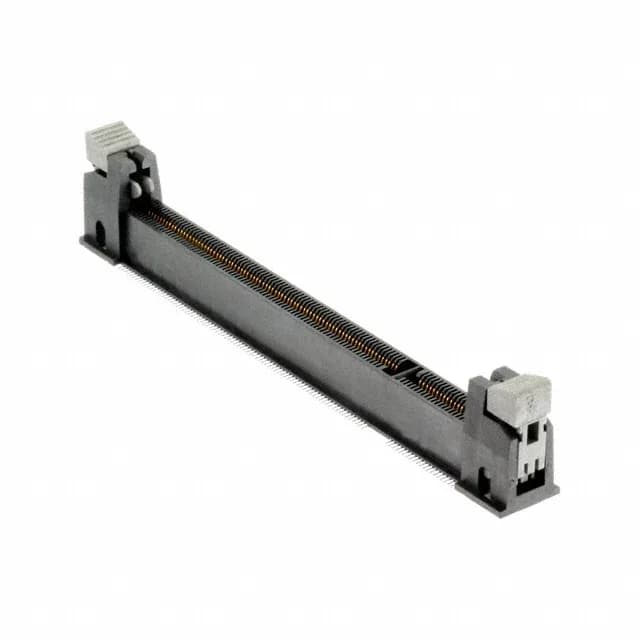

SODIMM Socket for DDR Memory – 200-Position SMD
It uses surface-mount termination and gold flash contacts for reliable signal integrity in high-speed memory interfaces. Board guides and latches on the housing ensure positive module alignment and retention during assembly and in-service vibration.
Build-to-Print Checklist – Mating and Accessories
Mates with standard DDR SODIMM modules (200-pin, 1.00 mm card thickness). The socket accepts modules with a card thickness of 0.039" (1.00mm). No separate contacts or backshell required – the socket is a one-piece SMD assembly. The board guide and latches are integrated.
