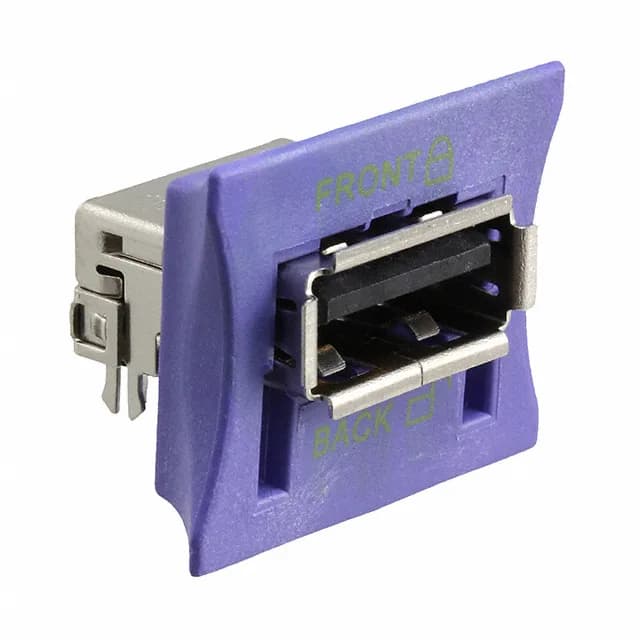

TE Connectivity AMP Connectors 2041039-1, USB-A (USB TYPE-A) receptacle, 4 contacts, USB 2.0, through hole right angle, gold contact finish, board lock and sliding collar, tray package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 4 |
| Mounting feature | Horizontal |
| Insulation color | Black |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock, Sliding Collar |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 2041039-1: It mounts through hole, right angle, with a horizontal orientation, and includes a board lock and sliding collar for mechanical retention.
Rated for USB 2.0, the 2041039-1 does not support the higher data rates or additional contacts of USB 3.0. For a USB 3.0 application, a different connector with the appropriate specification is required.
The 2041039-1 is obsolete.
For a pin-compatible alternative, a search of the USB-A receptacle family with the same 4 contacts, USB 2.0, through hole right angle, and board lock features is recommended.
No. USB 3.0 requires a different connector with higher data rate capability and additional contacts.
